Product Description

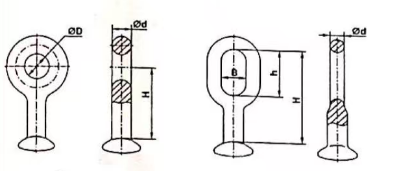

Referencedesignation | Taper size designation | Dimensions,mm | Minimum failing load, kN | Weight, kg | |||||
| D | b | H | B | d | h | ||||
| CP-7-16 | 16 | 17 | 16 | 65 | - | - | - | 70 | 0.26 |
| CP-12-16 | 23 | 22 | 65 | - | - | - | 120 | 0.3 | |
| CP-16-20 | 20 | 26 | 25 | 70 | - | - | - | 160 | 0.51 |
| CP-21-20 | 29 | 28 | 80 | - | - | - | 210 | 0.55 | |
| CP-30-24 | 24 | 38 | 36 | 100 | - | - | - | 300 | 1.05 |
| CP-40-28 | 28 | 42 | 40 | 120 | - | - | - | 400 | 1.73 |
| CP-53-32 | 32 | 44 | 42 | 125 | - | - | - | 530 | 2.53 |
One-labels of I have composed insulated suspension wires and lightning-seamed cables
. Earrings are pesticidally connected to the insulator cap or head of the earpiece. Pasmeters of the earpiece 300BYK TweTTBVt lvYi ceper nofOCT 27396(M3120).Pasmeters of the earpiece are in accordance with TweTT 11359-75.The breaking load of the earpiece must correspond to the breaking load of the clutch fittings connected to it.
Earrings with modification "m" provideChivatt reduction of the torque, the origin ofHeathers and insulators (especially in polymer) in the occurrence of dynamismChes loads in the suspension, Earrings Crs¬M allow to reduce the quantity of products in the suspensionoperation at the ambient temperature of hot air from -b0 °C to +50 °CCompletion yXl1noOCT 15150
Suitable RequiredI'FOCTP51177-2017,OCTP51155-2017,CT056947007-2912010064-2010,Ty3449-105-00111120-94Assembly Instruction:LA-001 IM

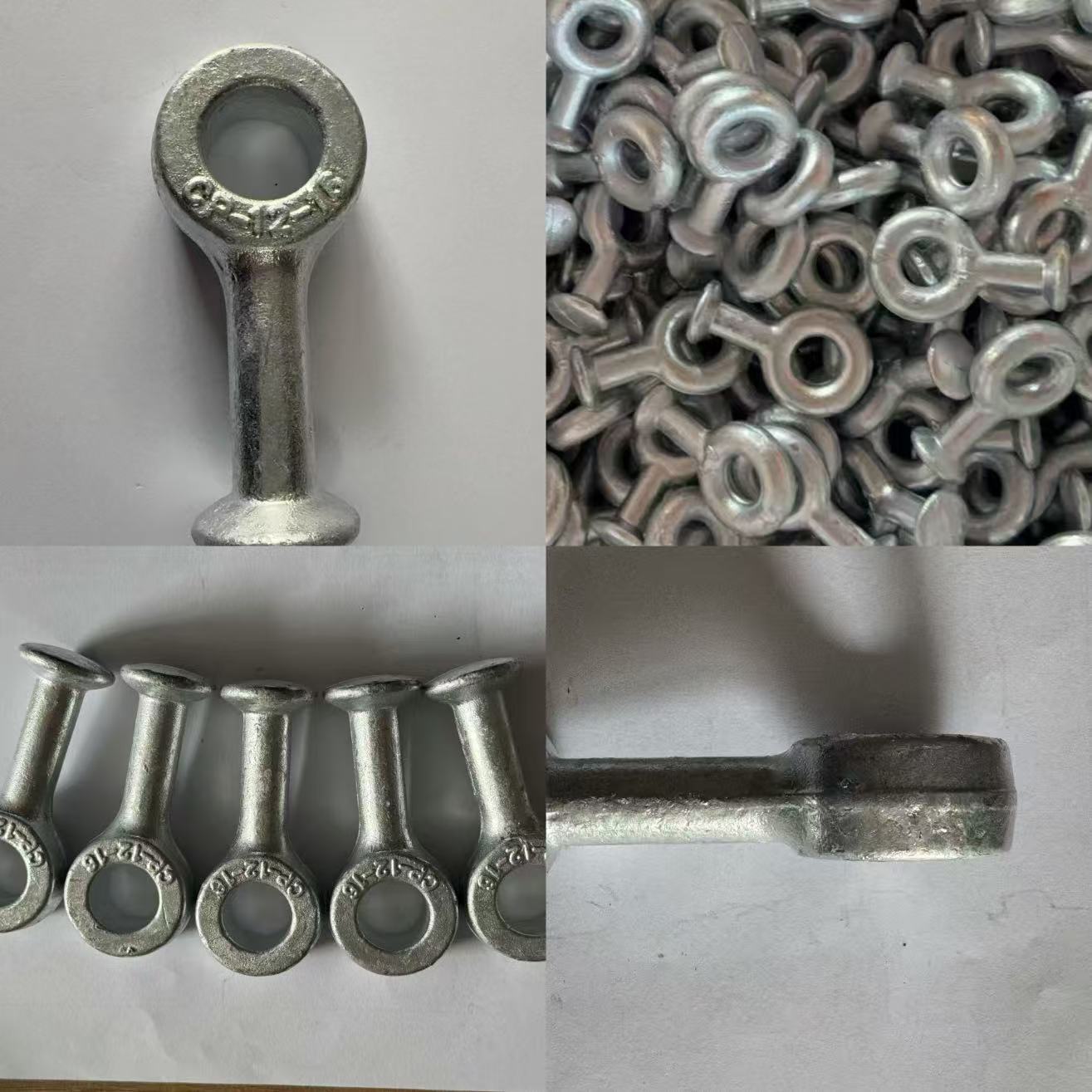

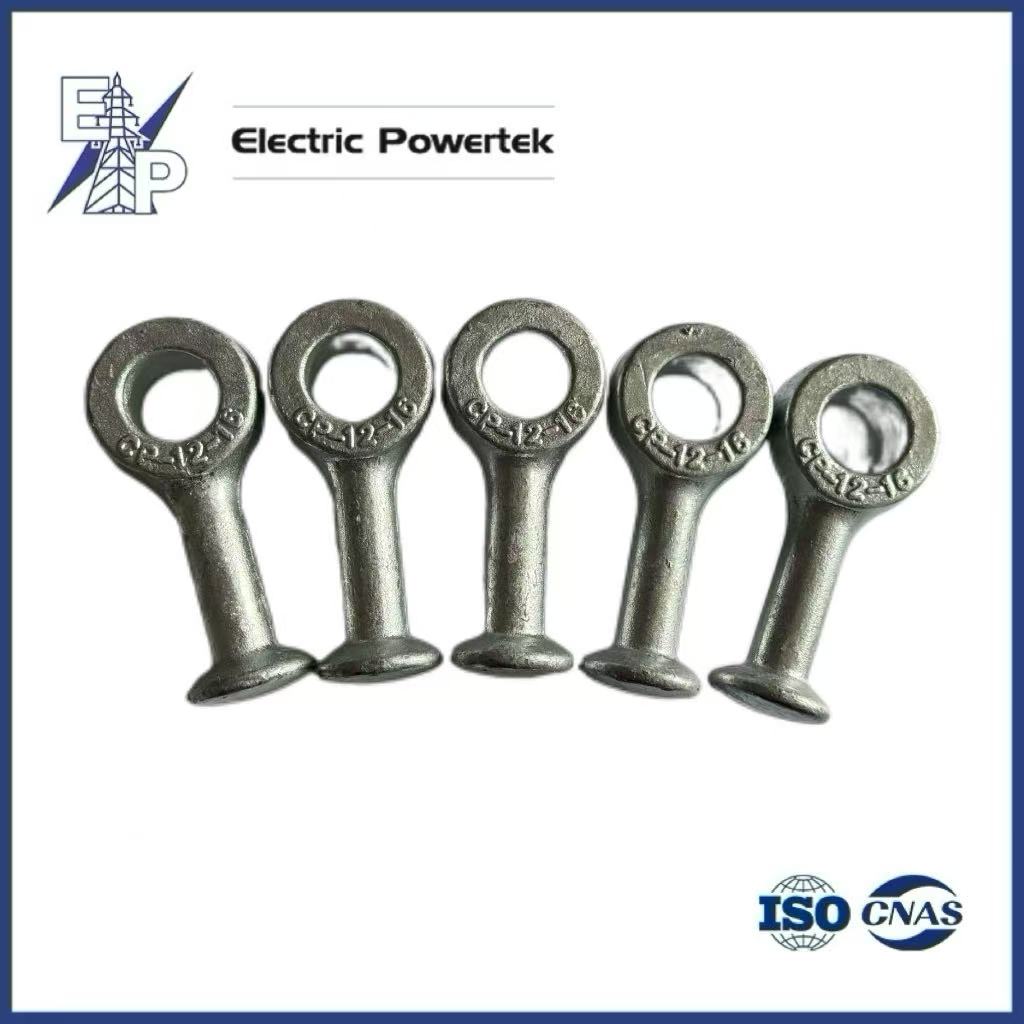

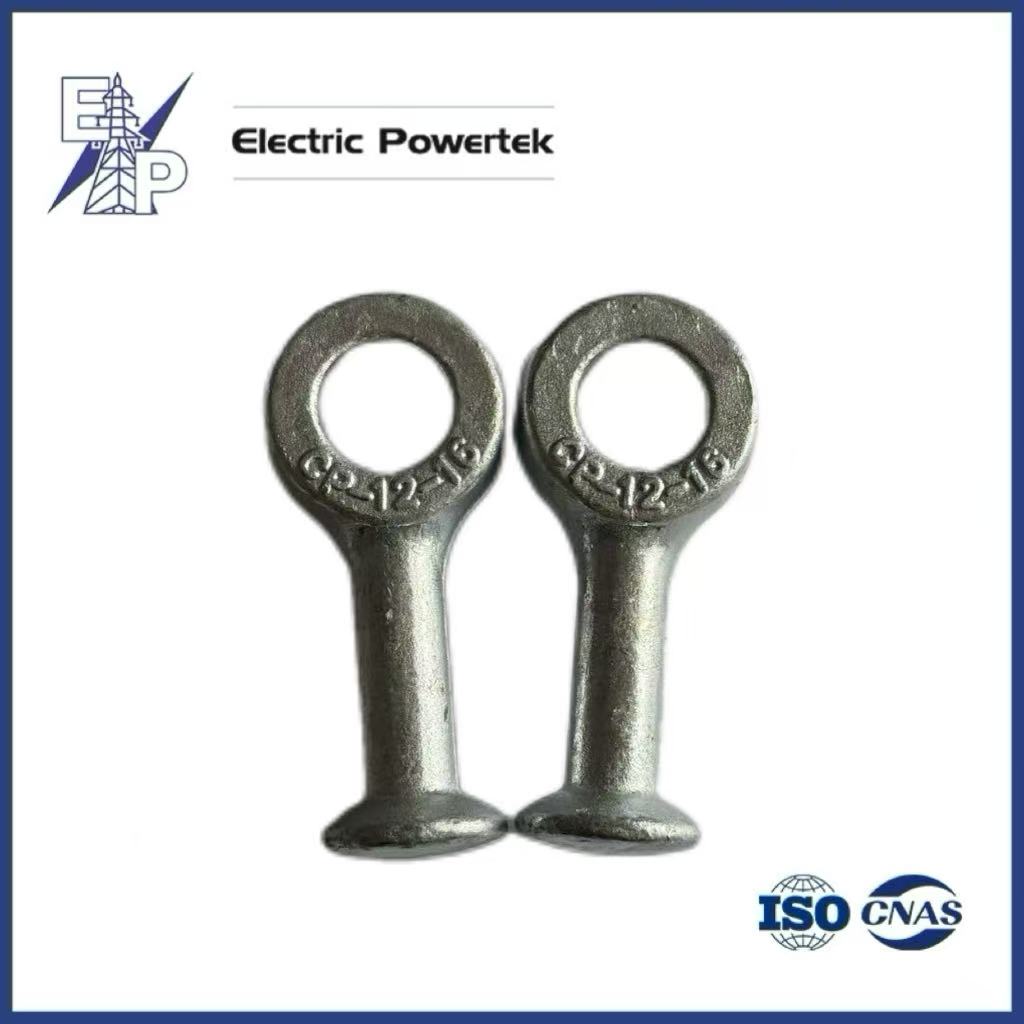

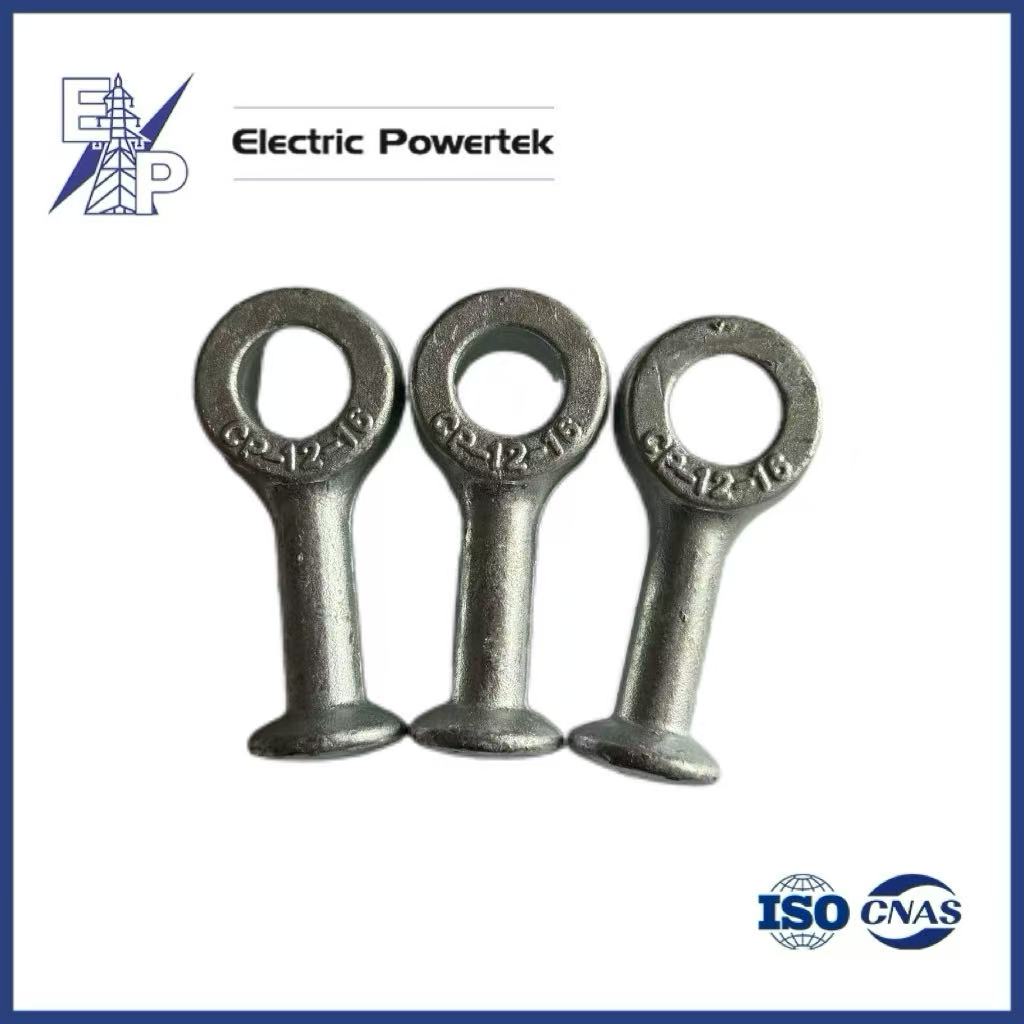

Product Display
Company Profile
Electric Powertek Company Ltd. was established on July28,2017,and is located at No.77,East District, Sixian Industrial Zone,Renqiu City, Cangzhou City,Hebei Province.It is an enterprise integrating R&D, production and sales. The company mainly engages in lightning protection and grounding series products and electric power fitting series products.Our products comply with ISO,UL,CE and BS standards. Our prod- ucts have been exported to many countries and regions such as the UnitedStates, the Middle East, Europe, Africa, Asia, Australia, New Zealand, South Amer- ica and Central America. We have a professional sales team, solve problems through technology, provide one-stop solutions, and offer customers worry-free services.Welcome both new and existing customers to visit our factory. For contact information, please call 18611252796.
Please click the link in the description for more product information!

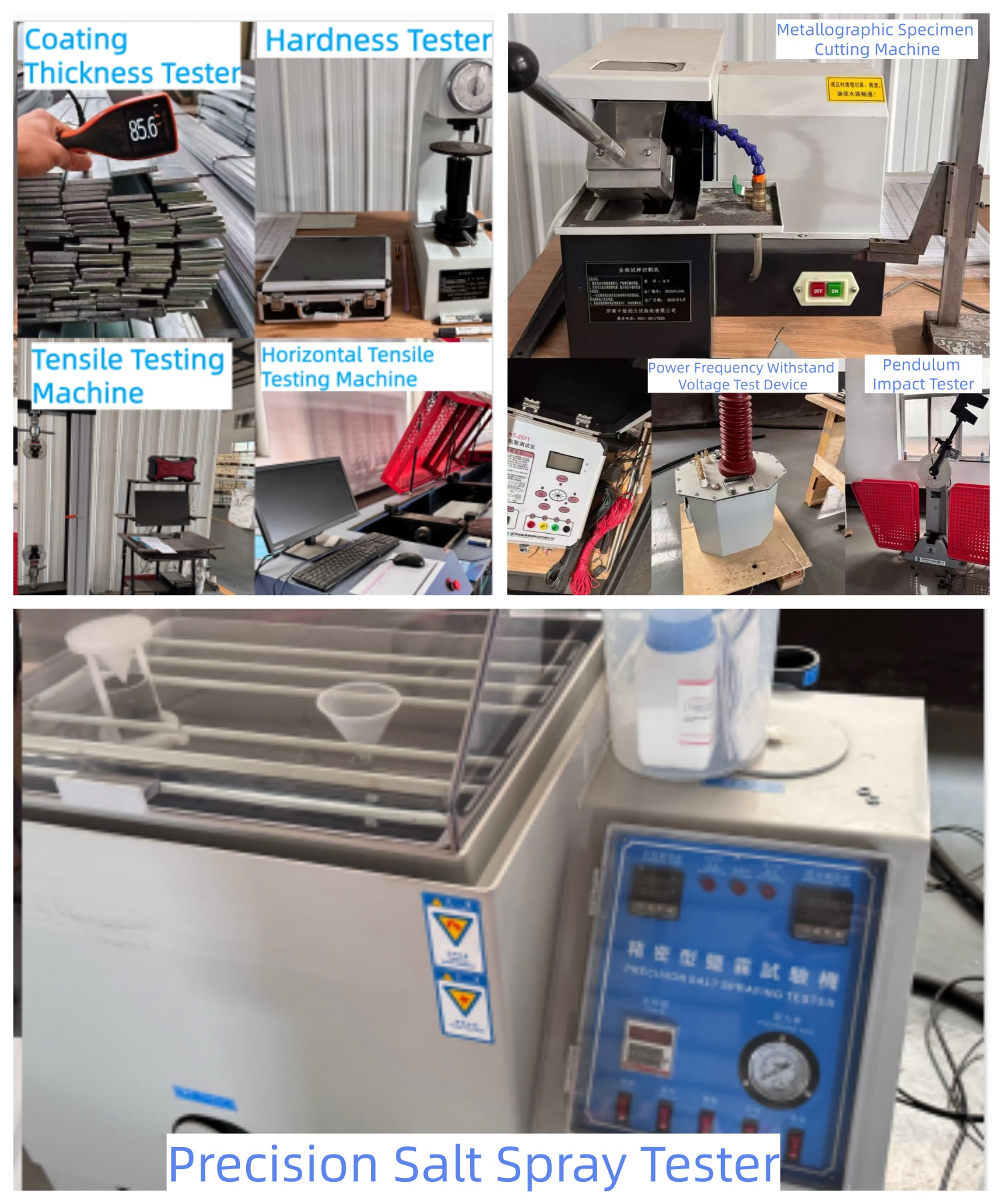

Factory Environment &Machinery Equipment
