Product Description
Material: E-Cu
Surface treatment: Tin-plate mini 8 microns
Product property: It is used to connect the copper conductor end
Application up to 33kv. It is in accordance with DIN46235 with
markings for correct crimping. And its tyoe test is follow IEC 61238-1.
Type | Dimensions(mm) | ||
L | d | Φ | |
AUS 6-5 | 30.5 | 30.5 | 5.3 |
AUS 6-6 | 31.5 | 3.8 | 6.4 |
AUS 6-8 | 34 | 3.8 | 8.4 |
AUS 10-5 | 34 | 4.5 | 5.3 |
AUS 10-6 | 34.5 | 4.5 | 6.4 |
AUS 10-8 | 37 | 4.5 | 8.4 |
AUS 16-6 | 43.5 | 5.5 | 6.4 |
AUS 16-8 | 46 | 5.5 | 8.4 |
AUS 16-10 | 48 | 5.5 | 10.5 |
AUS 16-12 | 49 | 5.5 | 13 |
AUS 25-6 | 45.5 | 7 | 64 |
AUS 25-8 | 48 | 7 | 8.4 |
AUS 25-10 | 50 | 7 | 10.5 |
AUS 25-12 | 51 | 7 | 13 |
AUS 35-6 | 49.5 | 8.4 | 6.4 |
AUS 35-8 | 52 | 8.4 | 8.4 |
AUS 35-10 | 54 | 8.4 | 10.5 |
AUS 35-12 | 55 | 8.4 | 13 |
AUS 35-14 | 56.5 | 8.2 | 15 |
AUS 50-8 | 62 | 10 | 8.4 |
AUS 50-10 | 64 | 10 | 10.5 |
AUS 50-12 | 65 | 10 | 13 |
AUS 50-14 | 66.5 | 10 | 15 |
AUS 50-16 | 68 | 10 | 17 |
AUS 70-8 | 65 | 11.5 | 8.4 |
AUS 70-10 | 67 | 11.5 | 10.5 |
AUS 70-12 | 68 | 11.5 | 13 |
AUS 70-14 | 69.5 | 11.5 | 15 |
AUS 70-16 | 71 | 11.5 | 17 |
AUS 95-8 | 77 | 13.5 | 8.4 |
AUS 95-10 | 77 | 13.5 | 10.5 |
AUS 95-12 | 78 | 13.5 | 13 |
AUS 95-14 | 79.5 | 13.5 | 15 |
AUS 95-16 | 81 | 13.5 | 17 |
AUS 120-10 | 85 | 15.5 | 10.5 |
AUS 120-12 | 86 | 15.5 | 13 |
AUS 120-14 | 88 | 15.5 | 15 |
AUS 120-16 | 89 | 15.5 | 17 |
AUS 120-20 | 91 | 15.5 | 21 |
AUS 150-10 | 93 | 17 | 10.5 |
AUS 150-12 | 94 | 17 | 13 |
AUS 150-14 | 97 | 17 | 15 |
AUS 150-16 | 97 | 17 | 17 |
AUS 150-20 | 99 | 17 | 21 |
AUS 185-10 | 97 | 19 | 10.5 |
AUS 185-12 | 98 | 19 | 13 |
AUS 185-14 | 101 | 19 | 15 |
AUS 185-16 | 101 | 19 | 17 |
AUS 185-20 | 103 | 19 | 21 |
AUS 240-12 | 108 | 21.5 | 13 |
AUS 240-14 | 111 | 21.5 | 15 |
AUS 240-16 | 111 | 21.5 | 17 |
AUS 240-20 | 113 | 21.5 | 21 |
AUS 300-14 | 119 | 24.5 | 15 |
AUS 300-16 | 119 | 24.5 | 17 |
AUS 300-20 | 122 | 24.5 | 21 |
AUS 400-14 | 140 | 27.5 | 15 |
AUS 400-16 | 140 | 27.5 | 19 |
AUS 400-20 | 140 | 27.5 | 21 |
AUS 500-16 | 150 | 31 | 17 |
AUS 500-20 | 150 | 31 | 21 |
AUS 630-16 | 160 | 34.5 | 17 |
AUS 630-20 | 160 | 34.5 | 21 |
AUS 800-16 | 195 | 40 | 17 |
AUS 800-20 | 195 | 40 | 21 |
AUS 1000-16 | 195 | 44 | 17 |
AUS 1000-20 | 195 | 44 | 21 |
Application

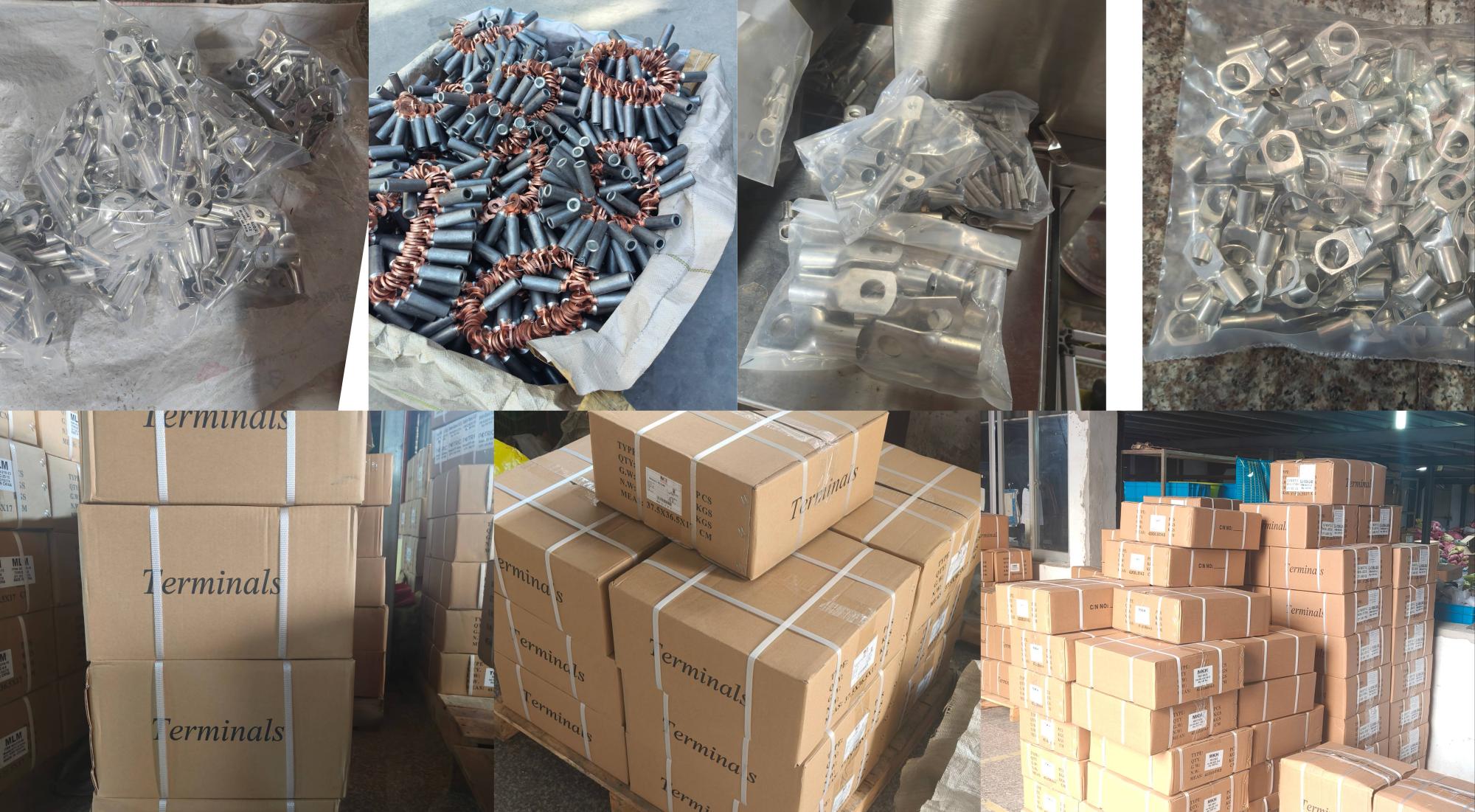

Packing&Delivery
