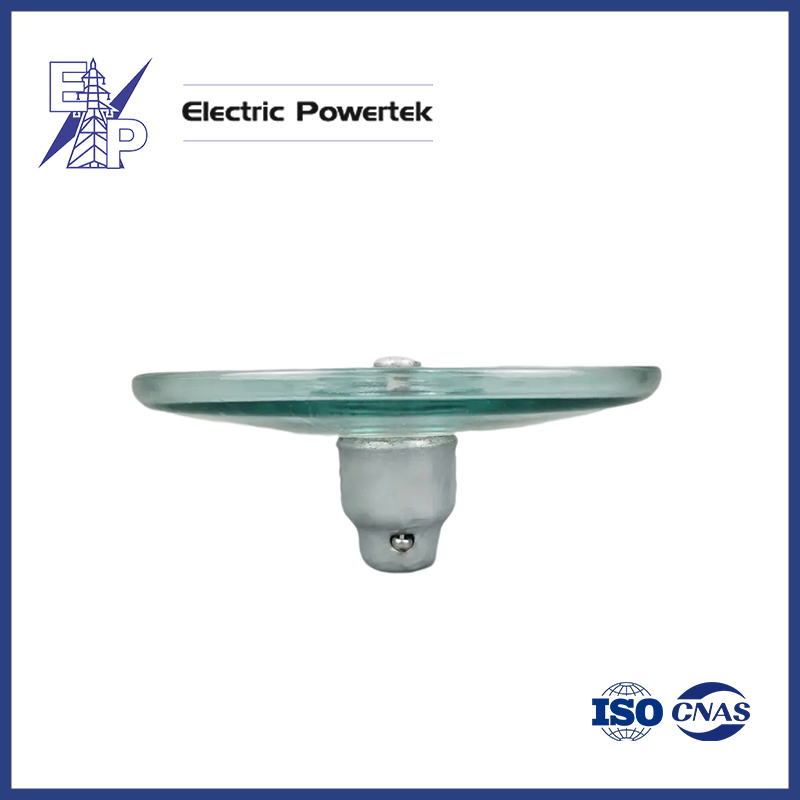

Aerodynamic Glass Disc Suspension Insulator is engineered for overhead transmission lines operating in desert, high wind, and sandstorm-prone regions. Its optimized open aerodynamic profile minimizes sand accumulation, reduces wind resistance, and enhances long-term insulation performance under harsh environmental conditions.

Manufactured from toughened low-alkali glass with a cap and pin suspension structure, this glass insulator type is widely applied in transmission corridors across arid and semi-arid climates.

Designed for Desert and High Wind Environments

Transmission infrastructure in desert regions faces unique operational challenges:

• Sandstorm exposure

• High wind velocity

• Low rainfall self-cleaning conditions

• Abrasive dust accumulation

• Extreme temperature variations

Utilities operating in regions such as the Middle East and North Africa require insulators that maintain electrical stability despite continuous sand deposition. Aerodynamic profile design reduces particle settlement and prevents contamination bridging during humid conditions.

This makes the aerodynamic type particularly suitable for long-distance desert transmission lines and renewable energy evacuation corridors.

Open Aerodynamic Profile Structure

Unlike standard or fog-type sheds, the aerodynamic (open profile) design:

• Reduces air drag under strong wind

• Minimizes sand retention on shed surfaces

• Improves natural cleaning under limited rainfall

• Enhances stability against wind-induced swing

For EPC contractors constructing long-span transmission systems, reduced wind load contributes to improved mechanical system performance and lower structural stress.

Toughened Glass Performance Benefits

The dielectric unit is manufactured using low-alkali toughened glass, offering:

High Mechanical Strength

The tempering process significantly improves impact resistance and tensile capacity, suitable for high-tension conductors.

Visible Safety Feature

In rare internal failure scenarios, the disc shatters visibly while remaining mechanically secured within the string, enabling fast inspection during line patrol.

Long-Term Electrical Stability

Glass material maintains consistent dielectric properties under prolonged UV exposure and extreme temperature cycles.

These characteristics ensure reliable operation in desert grids and remote infrastructure projects.

Cap & Pin Suspension Configuration

The aerodynamic glass disc insulator adopts a standardized ball-and-socket cap and pin design, allowing:

• Flexible articulation under wind movement

• Easy string assembly

• Compatibility with international transmission hardware systems

• Secure mechanical locking with stainless steel locking devices

Metal fittings are hot-dip galvanized for corrosion protection in coastal desert transition areas.

Suitable Applications

Aerodynamic Glass Disc Suspension Insulator is commonly used in:

• Desert transmission corridors

• High wind plateau regions

• Sandstorm-prone areas

• Solar farm grid connection lines

• Remote infrastructure expansion projects

Major transmission contractors such as Power Construction Corporation of China and global energy solution providers like Siemens Energy often specify aerodynamic profiles for projects in extreme wind regions.

Voltage Range and Configuration

This insulator type is suitable for:

• 110kV transmission systems

• 132kV overhead lines

• 220kV grid networks

• Higher voltage systems depending on string configuration

Disc units can be assembled into suspension strings based on voltage class and insulation coordination requirements.

Production and Bulk Supply Capability

Electric Powertek supports large-scale infrastructure procurement with:

• Stable mass production capacity

• Strict dimensional tolerance control

• Routine mechanical and electrical testing

• Galvanization thickness inspection

• Export-compliant packaging

• Technical documentation and inspection reports

Our integrated manufacturing system ensures consistent quality for long-term transmission projects across the Middle East, Africa, Australia, and other desert-prone regions.

Why Choose Electric Powertek Aerodynamic Glass Insulators

• Specialized design for desert and high wind applications

• Strong mechanical performance and electrical reliability

• Compatible with complete overhead line hardware systems

• Experienced exporter serving global transmission markets

• One-stop supply of insulators and transmission fittings

Aerodynamic Glass Disc Suspension Insulator provides a dependable solution for transmission networks where wind resistance, sand mitigation, and long-term reliability are critical factors.

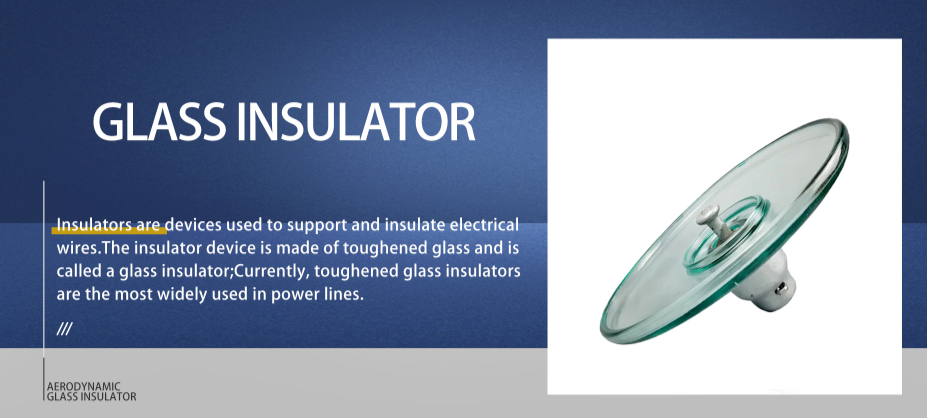

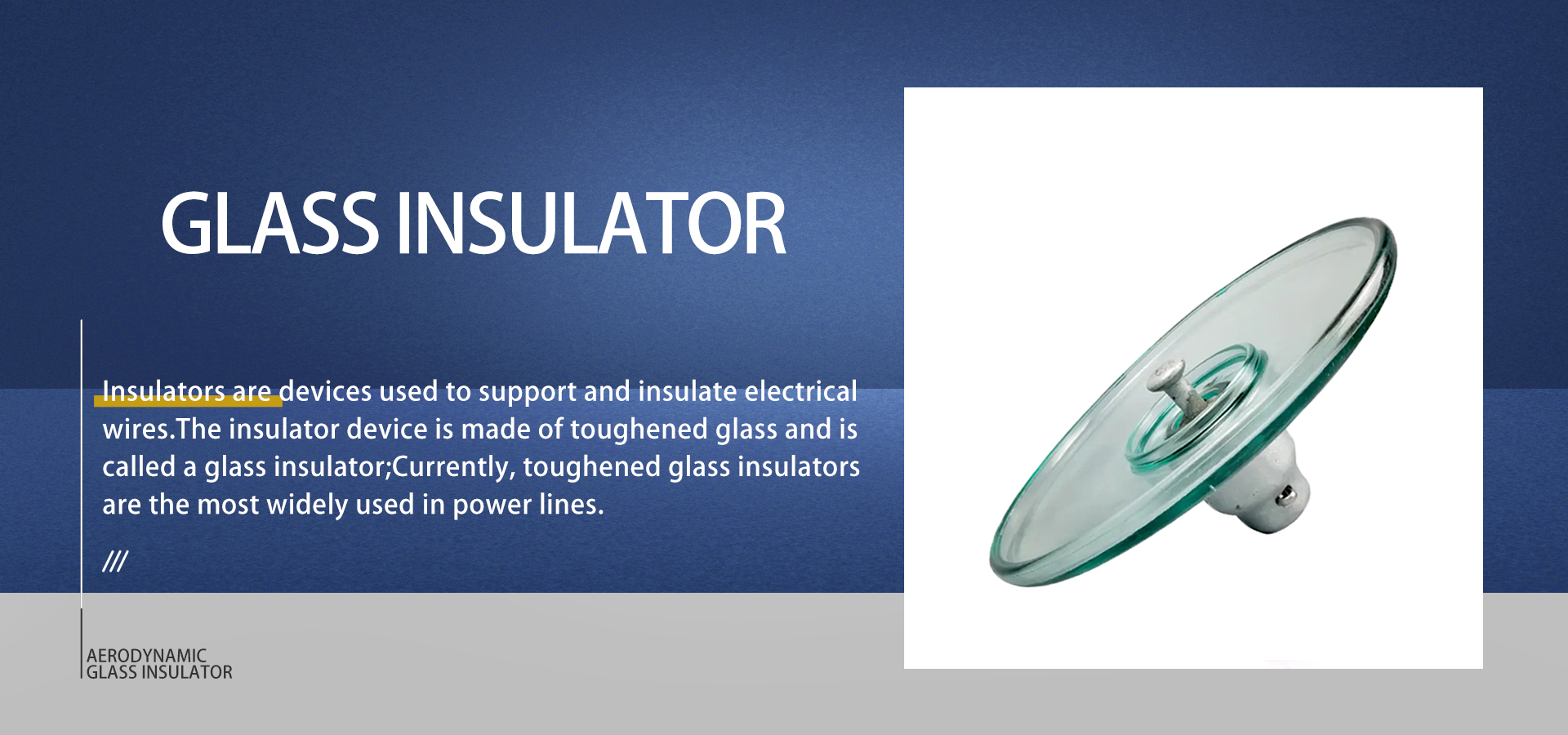

Glass insulator is a device used to support and insulate electrical wires. It is made from toughened glass, which enhances its strength and durability.

Currently, toughened glass insulators are among the most widely used insulators in power lines due to their excellent electrical insulation properties and mechanical strength.

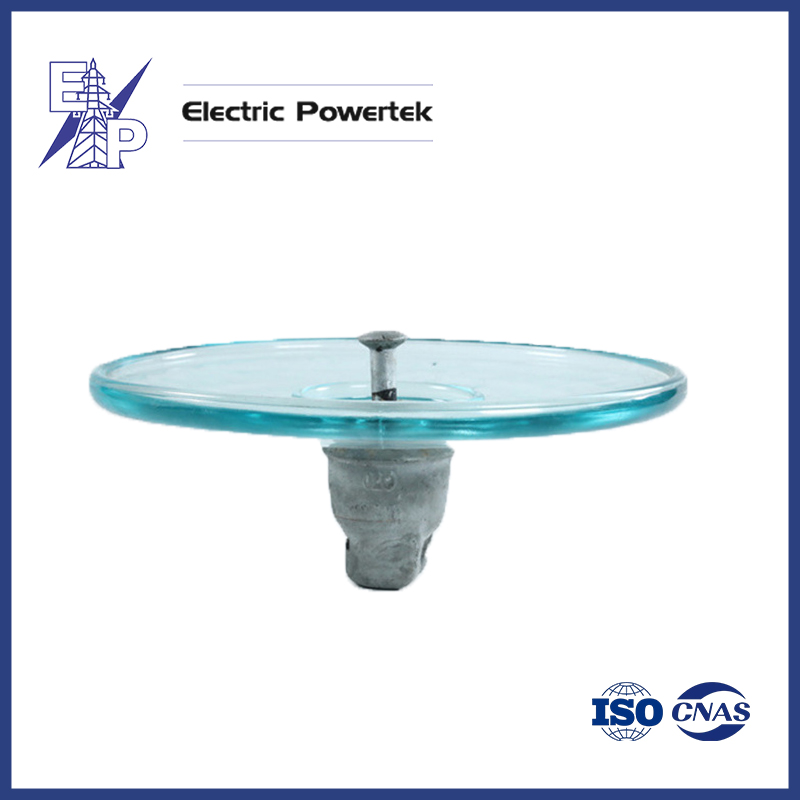

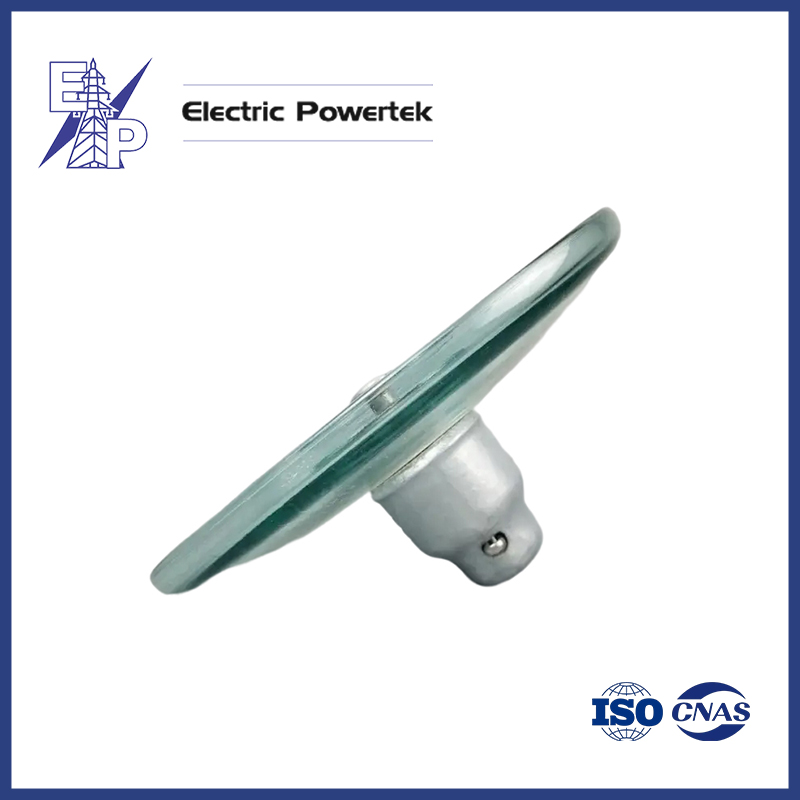

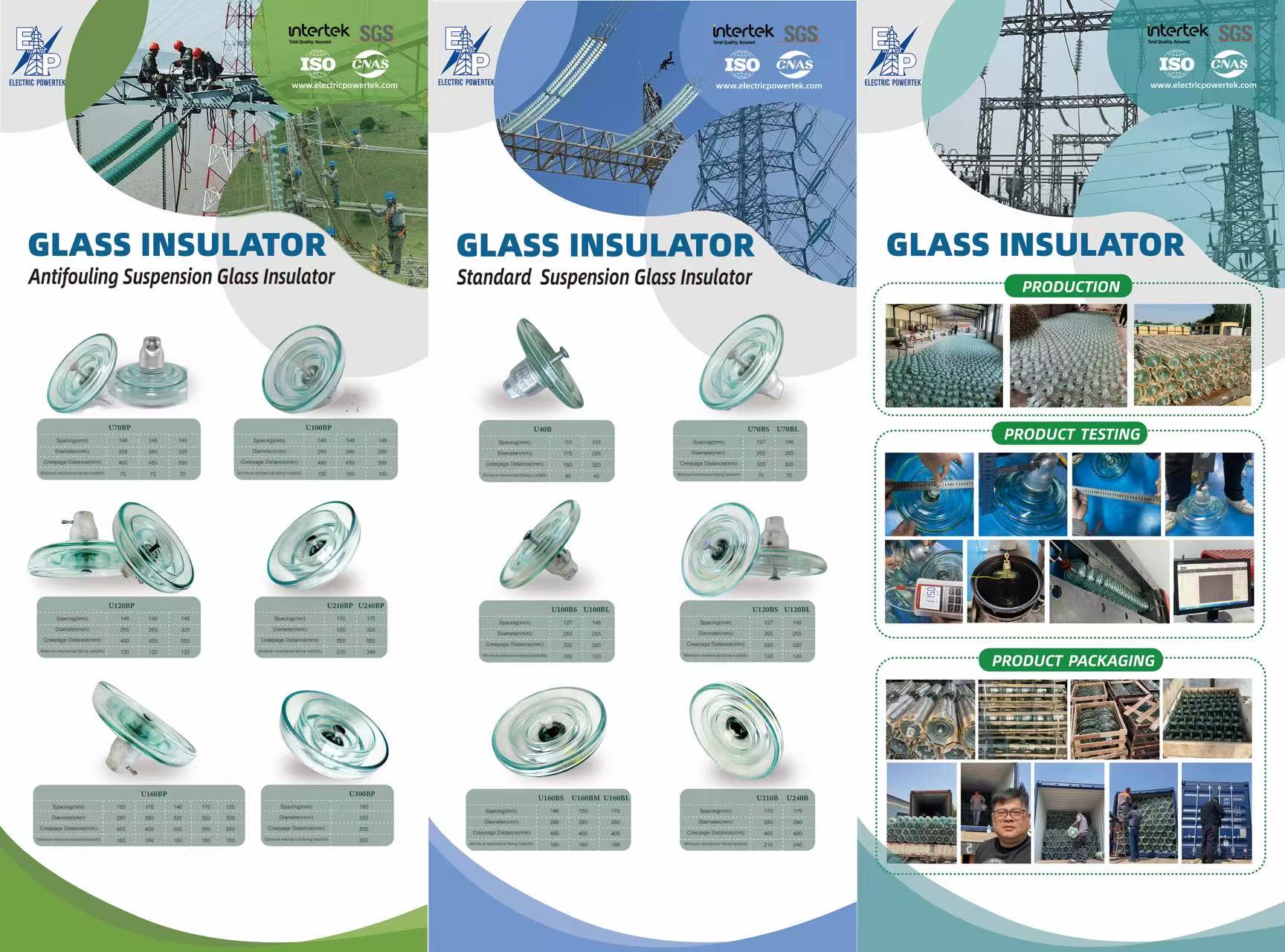

HIGH VOLTAGE AERODYNAMIC(Open) GLASS INSULATORS FOR TRANSMISSION LINES

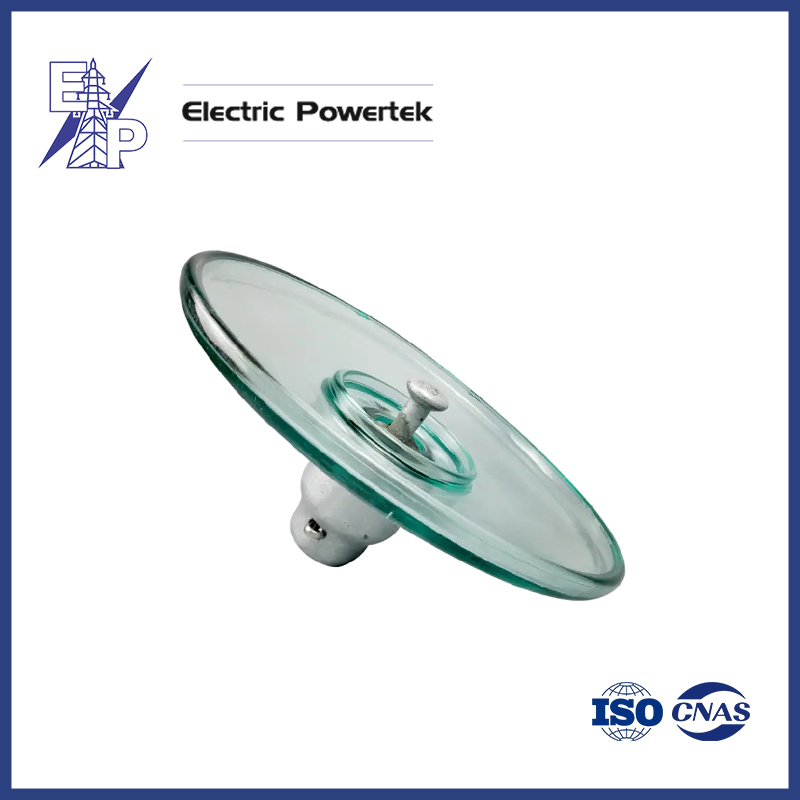

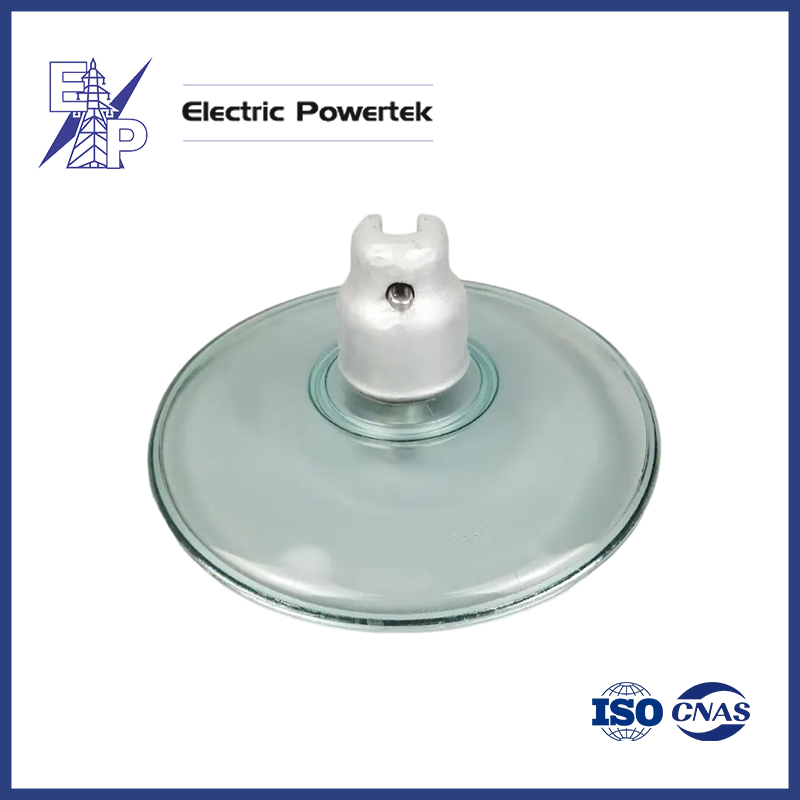

AERODYNAMIC(FOG) GLASS INSULATOR

Aerodynamic(Open) profiles must be used in the desert areas.

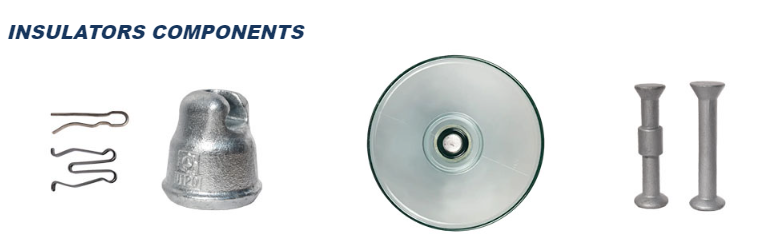

INSULATORS COMPONENTS

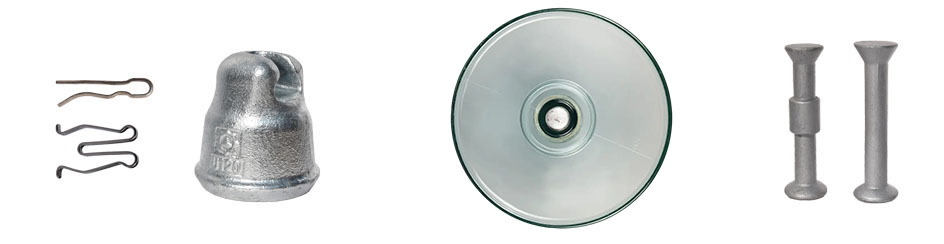

Cap and pin type of suspension glass insulator consists of the following elements: insulating part (or dielectric), pin, cap and locking device.

A locking device is a part of insulator for fixation and is manufactured of stainless steel. The assembling of an insulator is performed by cement-send mix followed by thermal wet treatment. The assembling may be performed with Portland cement or aluminosilicate cement.

A cap is for movable fixation of an insulator to another one or fittings. Caps are produced by casting from high-strength cast iron or malleable cast iron.They are made in the method of hot-dip galvanizing method to ensure its corrosion-resistant property.

Caps for DC insulators are equipped with a collar made by casting.

The insulating part is manufactured by the compaction method from low-alkali glass followed by toughening.

FEATURES OF GLASS INSULATOR

Glass insulators are a crucial component in the insulation and support of overhead transmission lines. In the early years, insulators were primarily used on power poles. However, their usages evolve to include high-voltage power line connection towers, where multiple disc-shaped insulators are hung at one end to increase the creepage distance. These insulators are commonly made of glass and are vital for maintaining insulation in power transmission systems.

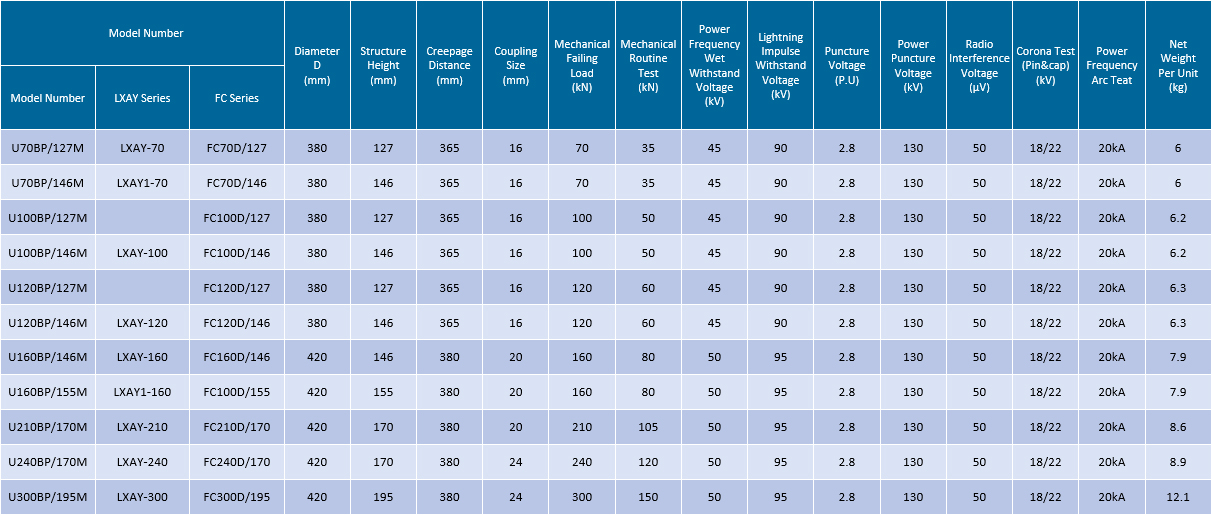

TECHNICAL PARAMETER

ADVANTAGES OF GLASS INSULATOR

• Raw Material:


Made of tempered(toughened)glass, which is more stable compared to materials used for porcelain insulators.

Suitable for various weather conditions; waterproof and moisture-proof.

Able to function normally in rainy or humid environments.

• Appearance:

Glass transparency makes it easier to detect small cracks, internal defects, or damages during visual inspections.

• Performance:

Excellent insulation performance and reliable operation.

High hardness, resistance to bending, and effective anti-fouling properties.

Strong mechanical and electrical performance, small size, lightweight, and long service life.

• Mechanical Strength:

High mechanical strength, especially on the surface, which is resistant to cracks and slow aging.

• Ease of Testing:

Preventive testing can be minimized since any damage to the glass is easily detectable during line inspections, allowing operators to identify problems visually.

• Self-Cleaning Properties:

Glass insulators have smooth surfaces, which reduce the accumulation of dirt, dust, and pollutants, especially in outdoor environments. Rainwater naturally helps clean the surface, maintaining performance.

• Resistant to Weathering:

Glass insulators have excellent resistance to UV radiation and other environmental factors, maintaining their strength and transparency over time without degradation.

• Thermal Stability:

Glass has good thermal properties, meaning it can withstand extreme temperature variations without cracking or losing insulation properties.

• Resistance to Corrosion:

Glass is highly resistant to corrosion, especially in harsh industrial or coastal environments, unlike metal components that can degrade due to chemical exposure.

• Safety Factor:

In case of damage, glass insulators tend to shatter into small, blunt pieces rather than large, sharp shards. This makes them safer to handle and reduces the risk of injury during maintenance or replacement.

• Environmental Friendliness:

Glass is a recyclable material, and glass insulators have a lower environmental impact in terms of disposal compared to other materials like plastics or certain ceramics.

• Long-Term Cost Efficiency:

Due to their long service life and reduced need for regular preventive testing or cleaning, glass insulators can offer lower maintenance costs over time compared to other insulator types.

Application

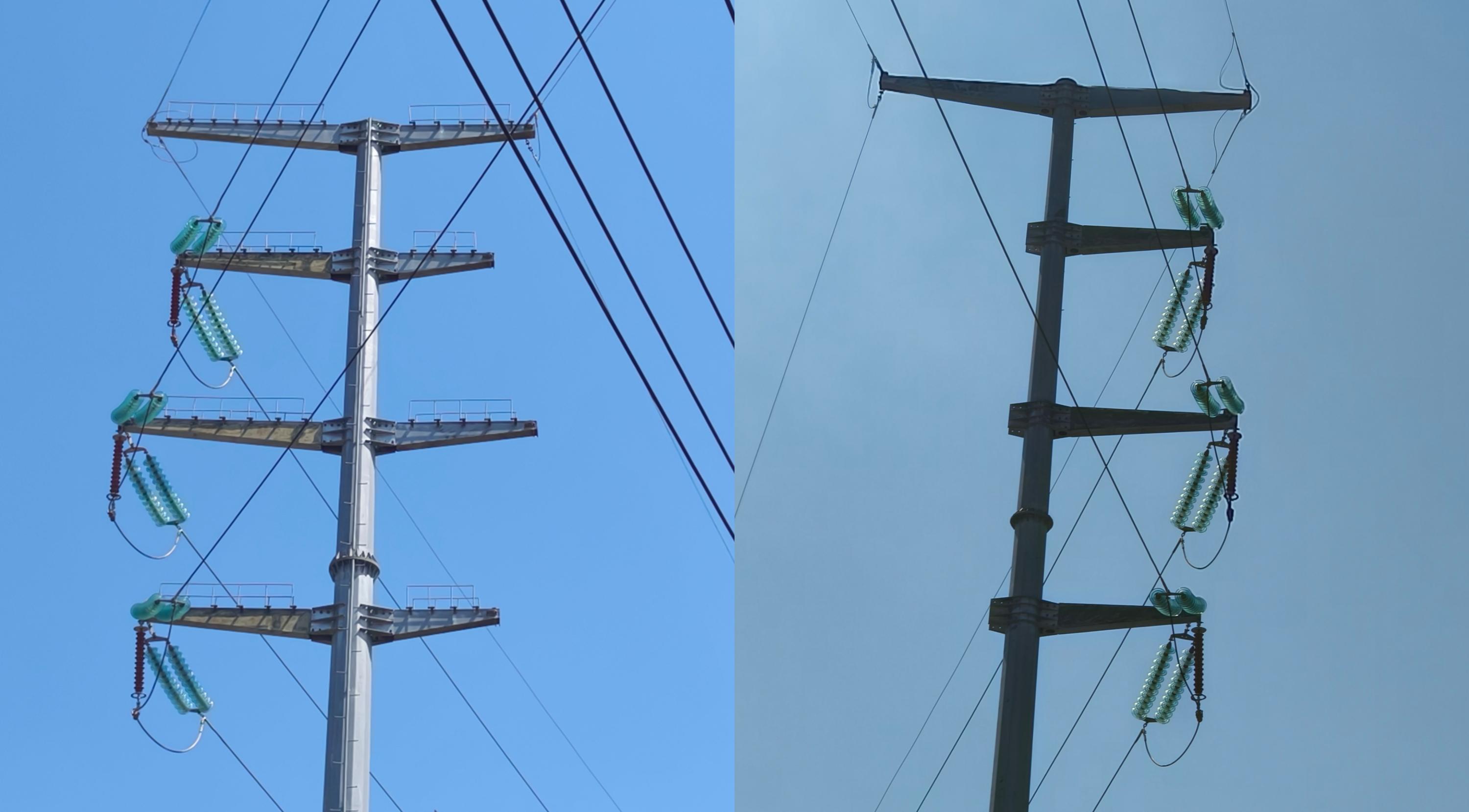

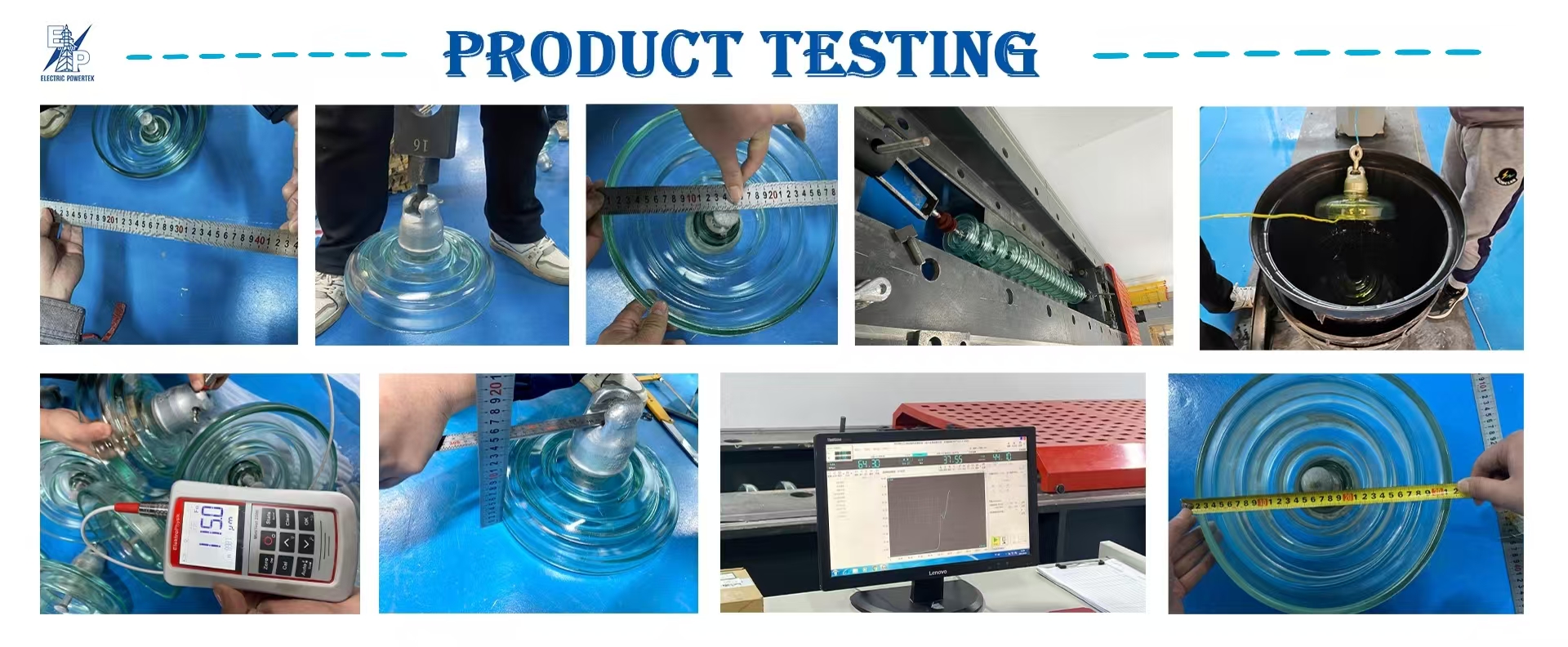

Testing

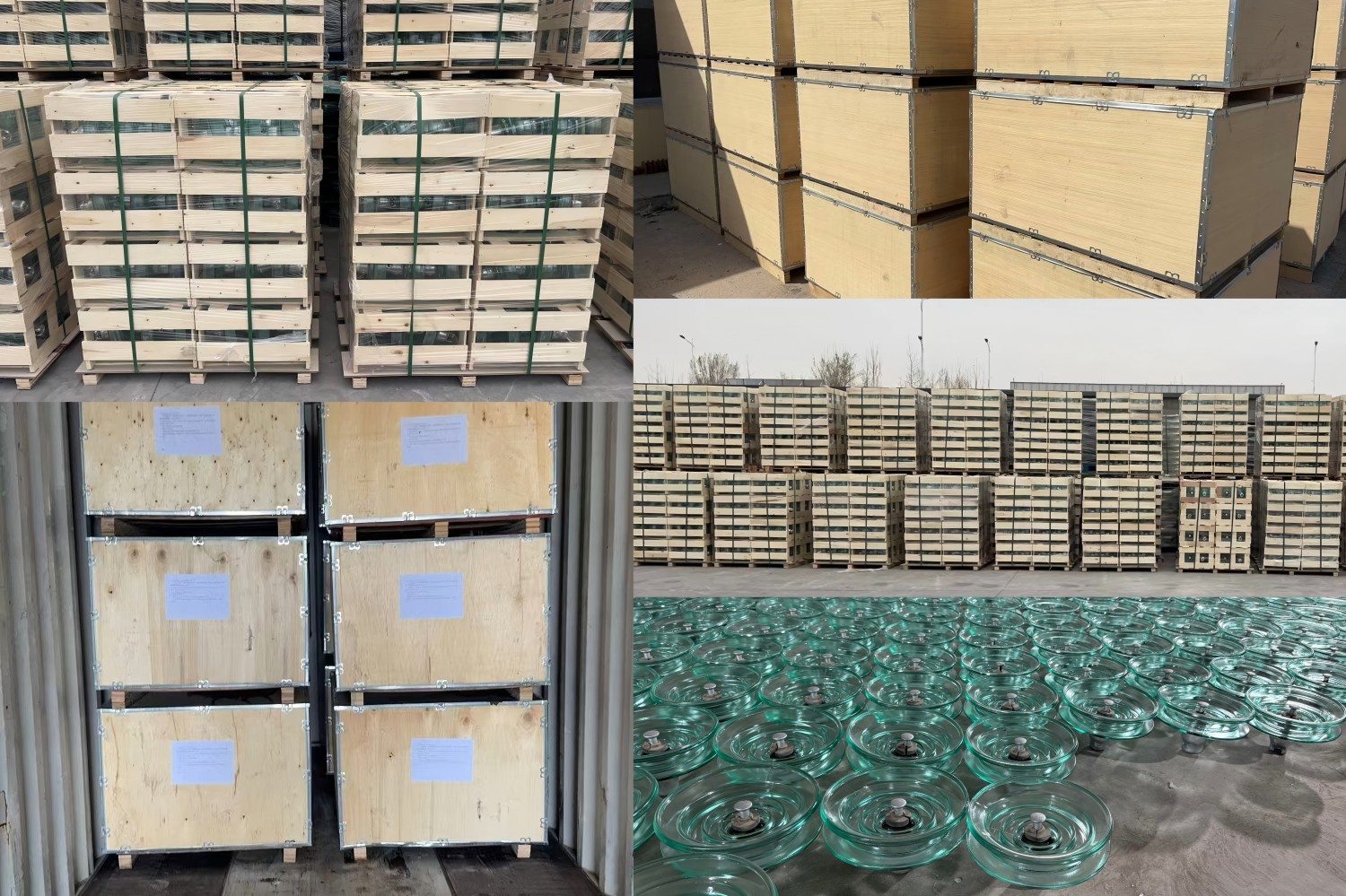

Packing&Delivery
