Product Description

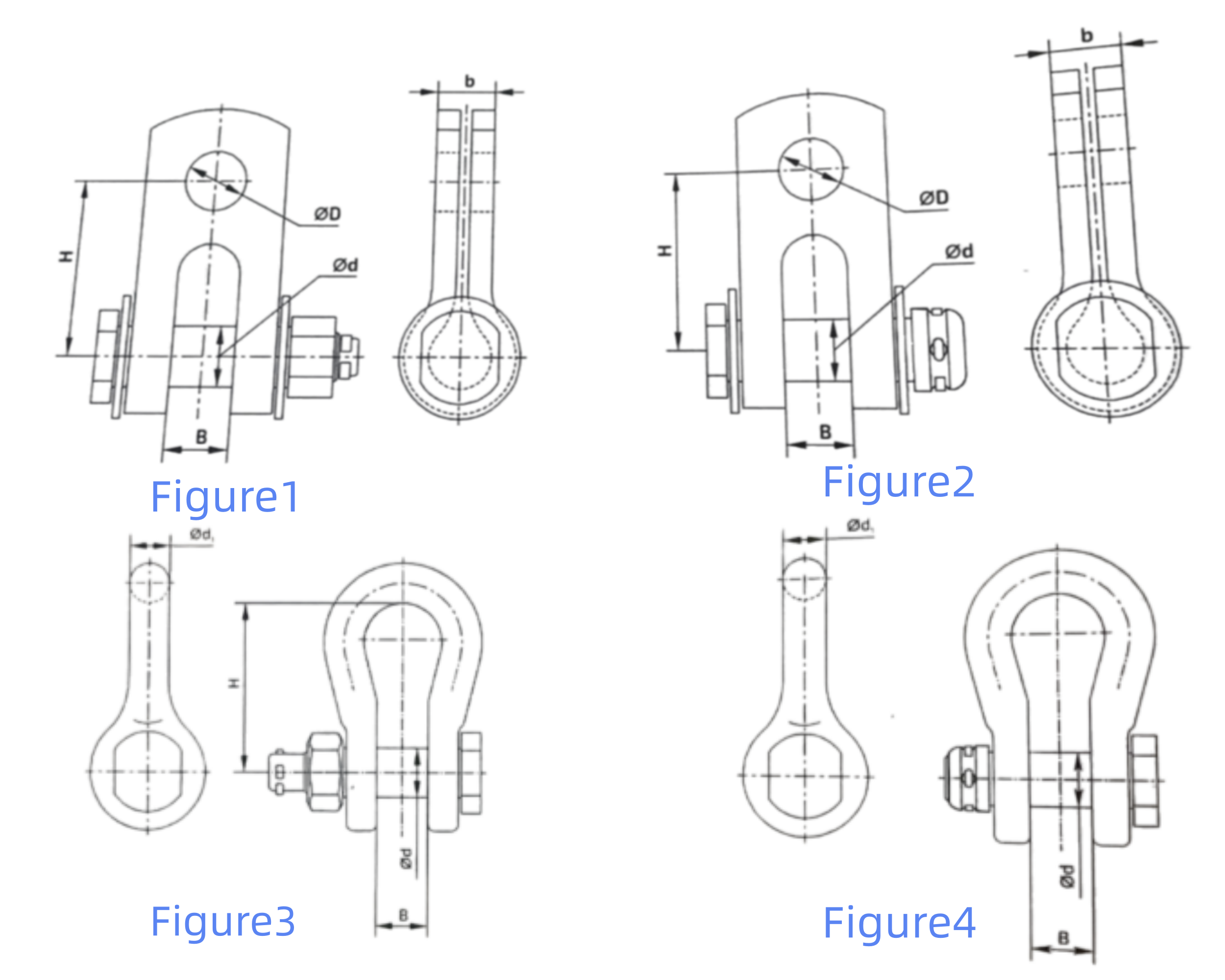

Reference designation | Fig | Dimensons,mm | Minimumfailing load, kN | Weight, kg | |||
| H | B | d | d1 | ||||
| SK-7-1A | 1 | 50 | 17 | 16 | 14 | 70 | 0.4 |
| SK-7-1AP | 2 | 50 | 17 | 16 | 14 | 70 | 0.4 |
| SK-7-1M | 3 | 60 | 17 | 16 | 14 | 70 | 0.39 |
| SK-7-1MP | 4 | 60 | 17 | 16 | 14 | 70 | 0.39 |
| SKD-10-1 | 1 | 80 | 19 | 18 | 16 | 100 | 0.7 |
| SKD-10-1P | 2 | 80 | 19 | 18 | 16 | 100 | 0.7 |
| SK-12-1A | 1 | 65 | 23 | 22 | 18 | 120 | 0.95 |
| SK-12-1AP | 2 | 65 | 23 | 22 | 18 | 120 | 0.95 |
| SKD-12-1 | 1 | 82 | 23 | 22 | 18 | 120 | 1.05 |
| SKD-12-1P | 2 | 82 | 23 | 22 | 18 | 120 | 1.05 |
| SK-12-1M | 3 | 70 | 23 | 22 | 18 | 120 | 1.1 |
| SK-12-1MP | 4 | 70 | 23 | 22 | 18 | 120 | 1.1 |
| SK-16-1A | 1 | 70 | 26 | 25 | 20 | 160 | 1.22 |
| SK-16-1AP | 2 | 70 | 26 | 25 | 20 | 160 | 1.22 |
| SKD-16-1 | 1 | 105 | 26 | 25 | 20 | 160 | 1.36 |
| SKD-16-1P | 2 | 105 | 26 | 25 | 20 | 160 | 1.36 |
| SK-16-1M | 3 | 85 | 26 | 25 | 20 | 160 | 1.3 |
| SK-16-1MP | 4 | 85 | 26 | 25 | 20 | 160 | 1.3 |
| SK-21-1A | 1 | 75 | 29 | 28 | 24 | 210 | 1.8 |
| SK-21-1AP | 2 | 75 | 29 | 28 | 24 | 210 | 1.8 |
| SKD-21-1 | 1 | 115 | 29 | 28 | 24 | 210 | 2.04 |
| SKD-21-1P | 2 | 115 | 29 | 28 | 24 | 210 | 2.04 |
| SK-21-1M | 3 | 95 | 29 | 28 | 24 | 210 | 1.9 |
| SK-21-1MP | 4 | 95 | 29 | 28 | 24 | 210 | 1.9 |
| SK-25-1A | 1 | 90 | 34 | 32 | 26 | 250 | 2.35 |
| SK-25-1AP | 2 | 90 | 34 | 32 | 26 | 250 | 2.35 |
| SK-25-1M | 3 | 110 | 34 | 32 | 26 | 250 | 2.83 |
| SK-25-1MP | 4 | 110 | 34 | 32 | 26 | 250 | 2.83 |
| SK-30-1A | 1 | 100 | 38 | 36 | 28 | 300 | 3.2 |
| SK-30-1AP | 2 | 100 | 38 | 36 | 28 | 300 | 3.2 |
| SKD-30-1 | 1 | 120 | 38 | 36 | 28 | 300 | 3.28 |
| SKD-30-1P | 2 | 120 | 38 | 36 | 28 | 300 | 3.28 |
| SK-45-1A | 1 | 100 | 42 | 40 | 34 | 450 | 4.6 |
| SK-45-1 | 1 | 170 | 42 | 40 | 34 | 450 | 5.6 |
| SK-53-1A | 1 | 110 | 44 | 42 | 36 | 530 | 5.89 |
| SK-60-1A | 1 | 125 | 47 | 45 | 38 | 600 | 7.2 |
| SK-75-1A | 1 | 125 | 52 | 50 | 40 | 750 | 9.35 |
| SK-90-1A | 1 | 150 | 58 | 56 | 48 | 900 | 12.22 |
| SK-110-1A | 1 | 150 | 62 | 60 | 53 | 1100 | 16.6 |
| SK-120-1 | 1 | 180 | 67 | 65 | 60 | 1200 | 21.65 |
| SK-135-1 | 1 | 180 | 72 | 70 | 60 | 1350 | 23.2 |
| SK-180-1 | 1 | 220 | 83 | 80 | 70 | 1800 | 35.9 |
Purpose

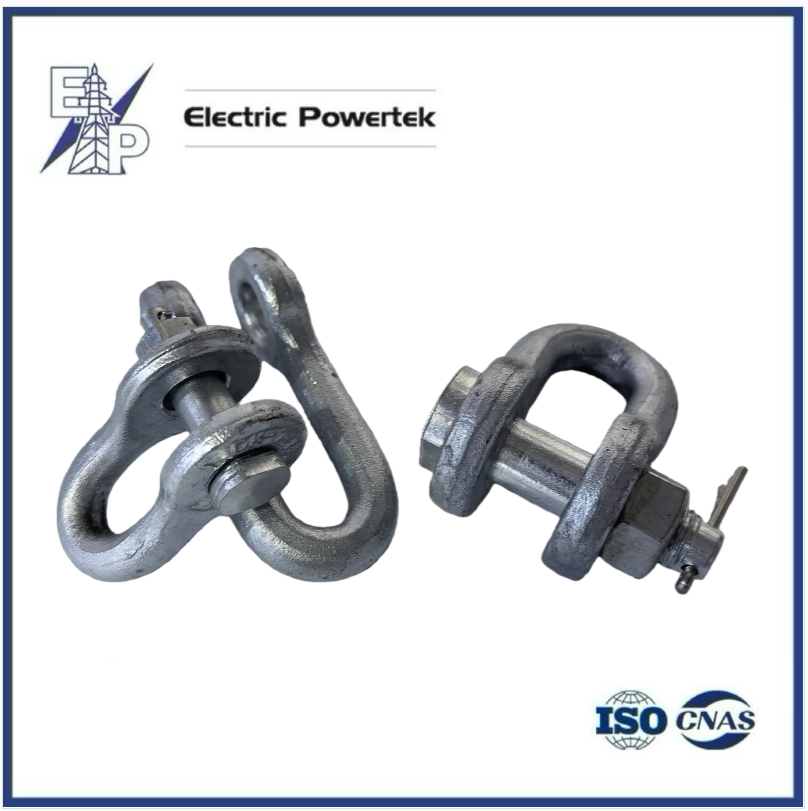

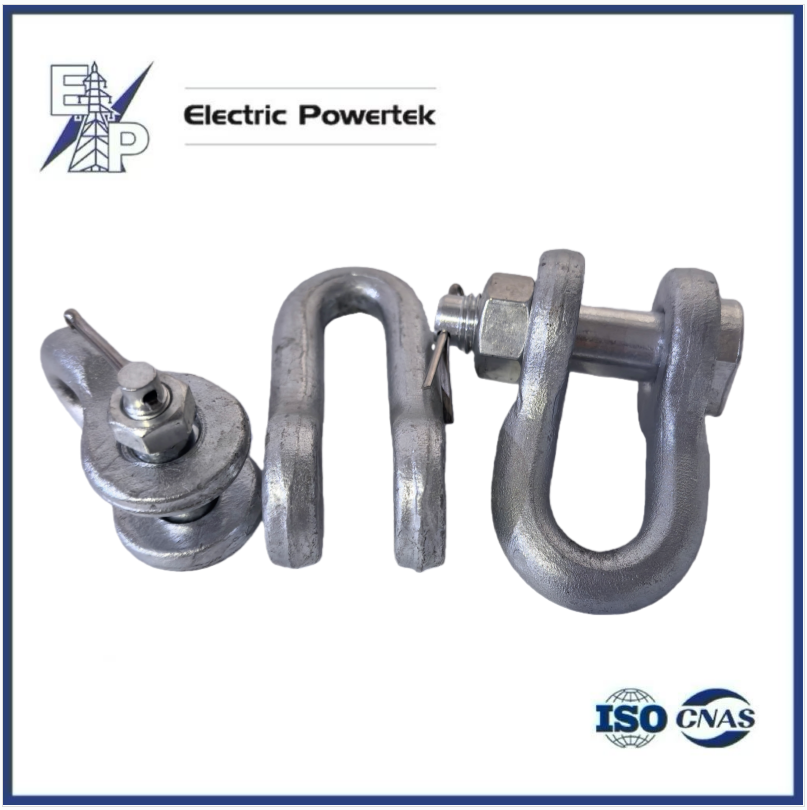

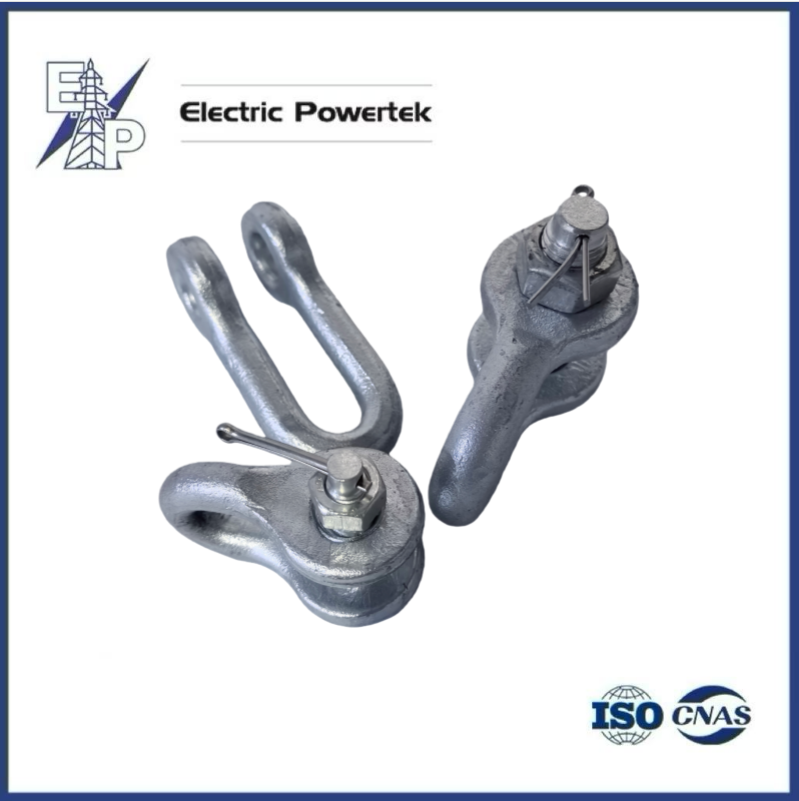

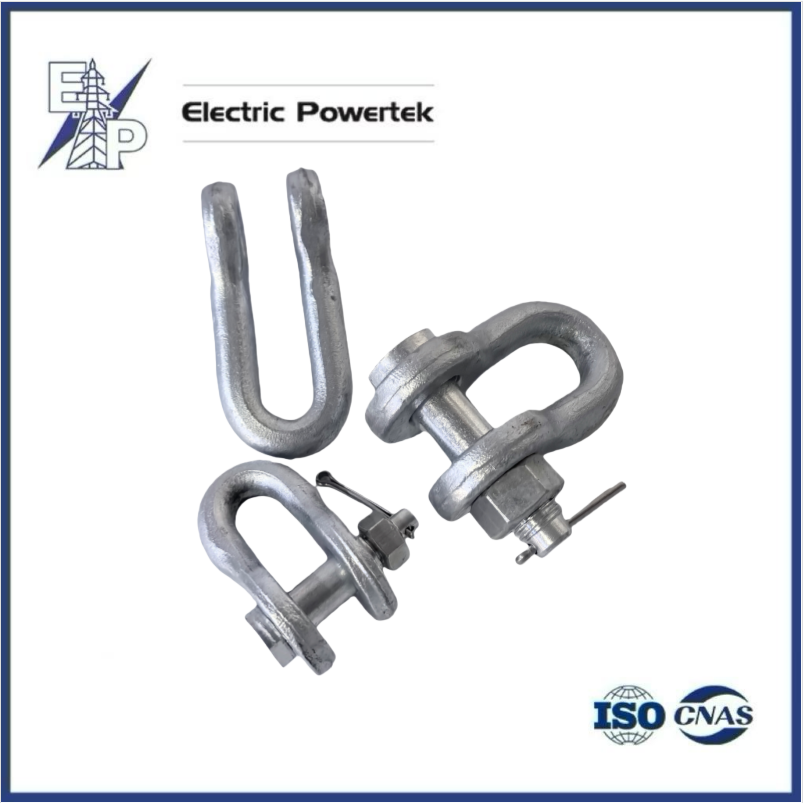

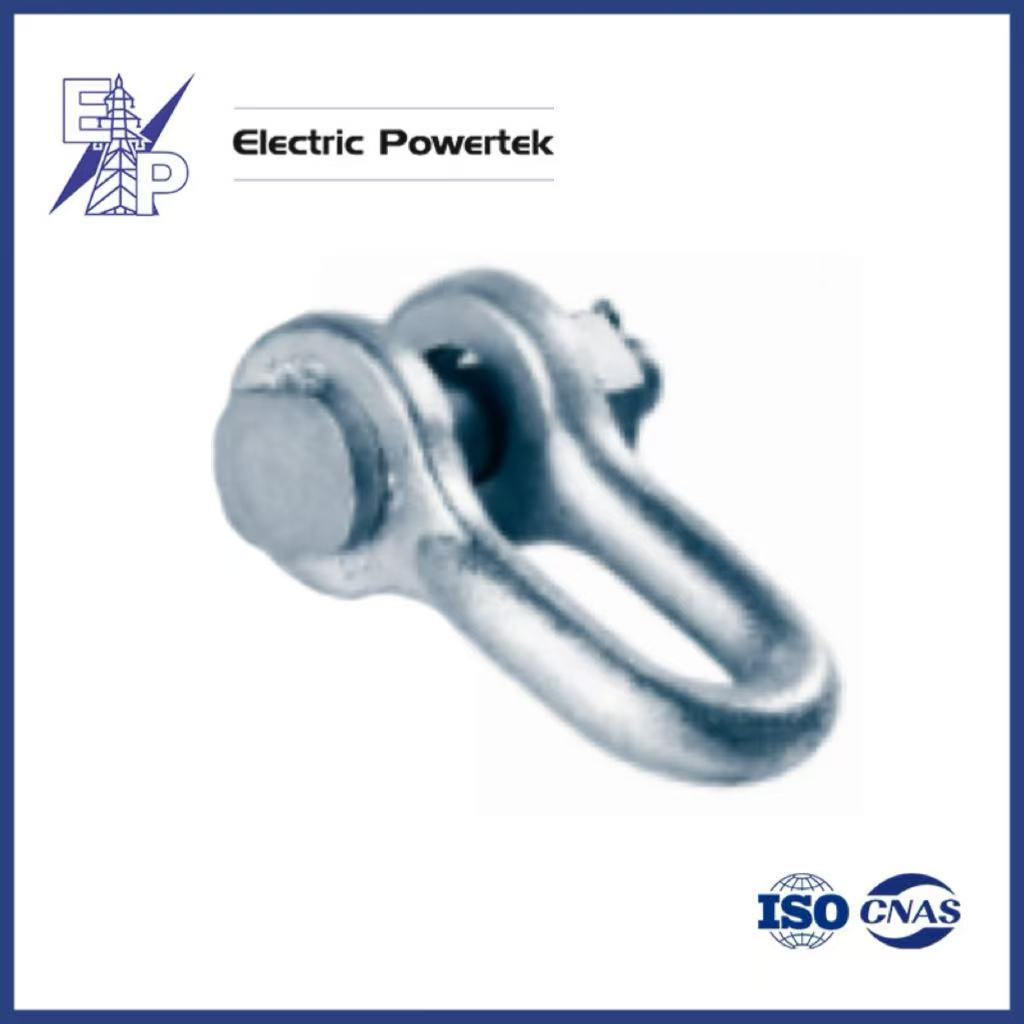

Shackles are designed for connecting single-core overhead power cables (cables with a cross-section of 1×120 mm² or larger) at line junctions. They provide electrical contact between the cables and support the mechanical load (the weight of the cable itself and the conductor).
1.SK-type shackles: Have a stationary (fixed) bolt, which simplifies installation (no need for additional tools) when connecting cables of the same diameter.
2.SKD-type shackles: Have an adjustable bolt, allowing connection of cables with different diameters (this compensates for dimensional variations in conductors, even under mechanical stress like wind).
Application & Protection
Shackles are used in overhead power lines and are protected from corrosion (due to their design). They are operated in an outdoor environment at temperatures ranging from -60°C to +50°C.
Compliance
Manufactured in accordance with:GOST 15150 (general technical requirements),GOST R 51777-2017, GOST R 51155-2017,STO 56947007-2912010.1064-2010,TU 3449-107-00111720-94.
Installation Instructions
Refer to Manual ДА-001 НМ.
