Product Description

Reference designation | Dimensons,mm | Minimumfailing load, kN | Weight, kg | |||
| B | H | d | d1 | |||
| SK-4-1 | 15 | 45 | 10 | 14 | 40 | 0.2 |
| SK-7-1A | 17 | 50 | 14 | 16 | 70 | 0.38 |
| SK-12-1A | 23 | 65 | 18 | 22 | 120 | 0.95 |
| SK-16-1A | 26 | 70 | 20 | 25 | 160 | 1.22 |
| SK-21-1A | 29 | 75 | 24 | 28 | 210 | 1.82 |
| SK-30-1A | 38 | 100 | 28 | 26 | 300 | 3.3 |
| SK-45-1A | 42 | 100 | 34 | 40 | 450 | 5.1 |
| SK-53-1A | 44 | 110 | 36 | 42 | 530 | 5.89 |
| SK-60-1A | 47 | 125 | 38 | 45 | 600 | 6.44 |
| SK-75-1A | 52 | 125 | 40 | 50 | 750 | 10.9 |
| SK-90-1A | 58 | 150 | 48 | 56 | 900 | 12.22 |
| SK-110-1A | 62 | 150 | 53 | 60 | 1100 | 16.43 |
| SK-120-1 | 67 | 180 | 60 | 65 | 1200 | 21.65 |
| SK-135-1 | 72 | 180 | 60 | 70 | 1350 | 23.2 |
| SK-180-1 | 83 | 220 | 70 | 80 | 1800 | 35.9 |
| SK-270-1 | 111 | 270 | 85 | 108 | 2700 | 66 |
| SK-360-1 | 128 | 320 | 95 | 125 | 3600 | 111.7 |
| SKD-10-1 | 19 | 80 | 16 | 18 | 100 | 0.67 |
| SKD-12-1 | 23 | 82 | 18 | 22 | 120 | 1.16 |
| SKD-16-1 | 26 | 105 | 20 | 25 | 160 | 1.36 |
| SKD-21-1 | 29 | 115 | 24 | 28 | 210 | 2 |
| SKD-45-1 | 42 | 170 | 34 | 40 | 450 | 6.03 |

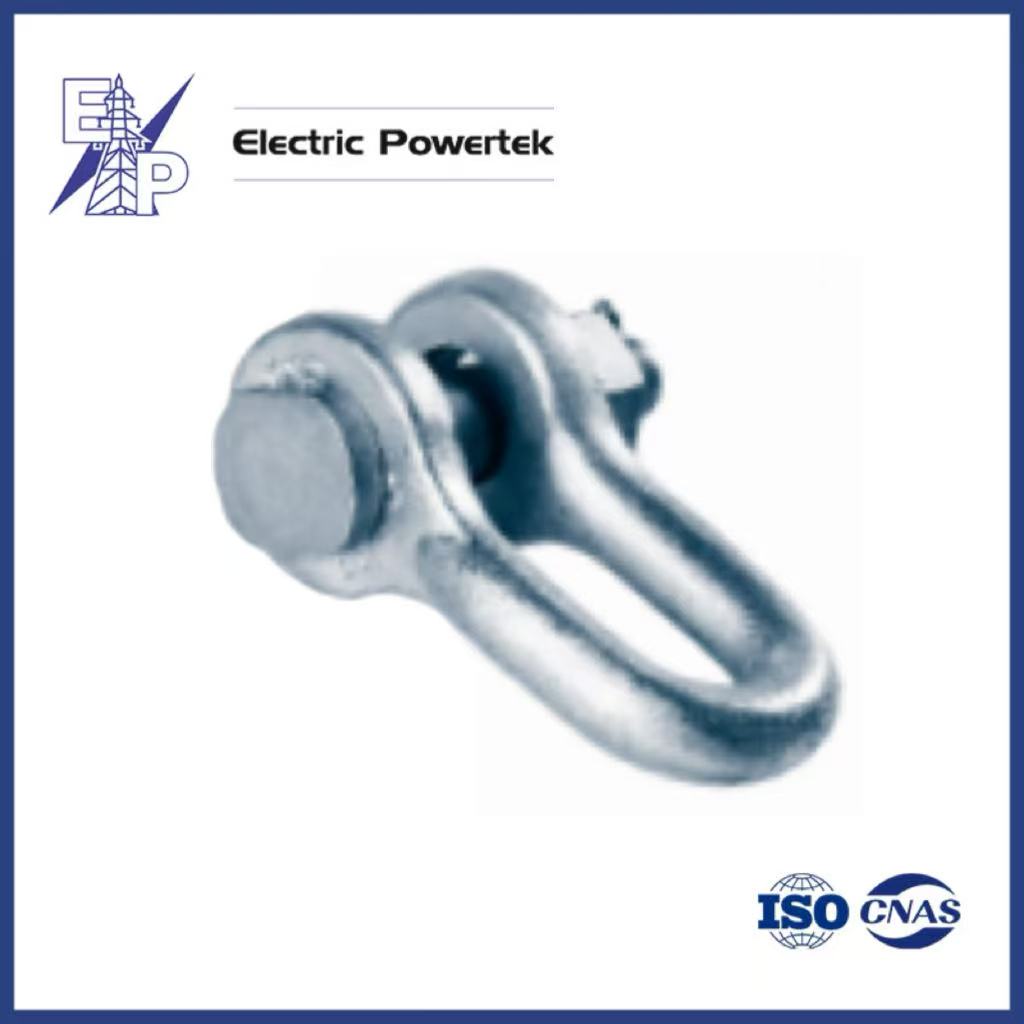

Shackles of $K and SkD type are intended for conwerting from "ball and socketcoupling to "clevis-tongue" coupling and for connecting line fittings intended foxdifferent mechanical ratings.Shackles meet Tu 3449-107-00111120-94 requirements
