Product Description
Reference designation | Dimensions,mm | Minimum failing load, kN | Weight, kg | ||||
| H | B | b | D | d | |||
| SKT-4-1 | 60 | 15 | 14 | 15 | 14 | 40 | 0.24 |
| SKT-7-1 | 60 | 17 | 16 | 17 | 16 | 70 | 0.46 |
| SKT-12-1 | 70 | 23 | 22 | 23 | 22 | 120 | 0.95 |
| SKT-16-1 | 80 | 26 | 25 | 26 | 25 | 160 | 1.52 |
| SKT-21-1 | 90 | 29 | 28 | 29 | 28 | 210 | 1.96 |
| SKT-30-1 | 110 | 38 | 36 | 38 | 36 | 300 | 3.53 |
| SKT-45-1 | 120 | 42 | 40 | 42 | 40 | 450 | 6.57 |
| SKT-53-1 | 130 | 44 | 42 | 44 | 42 | 530 | 7.48 |
| SKT-60-1 | 150 | 47 | 45 | 47 | 45 | 600 | 9.7 |

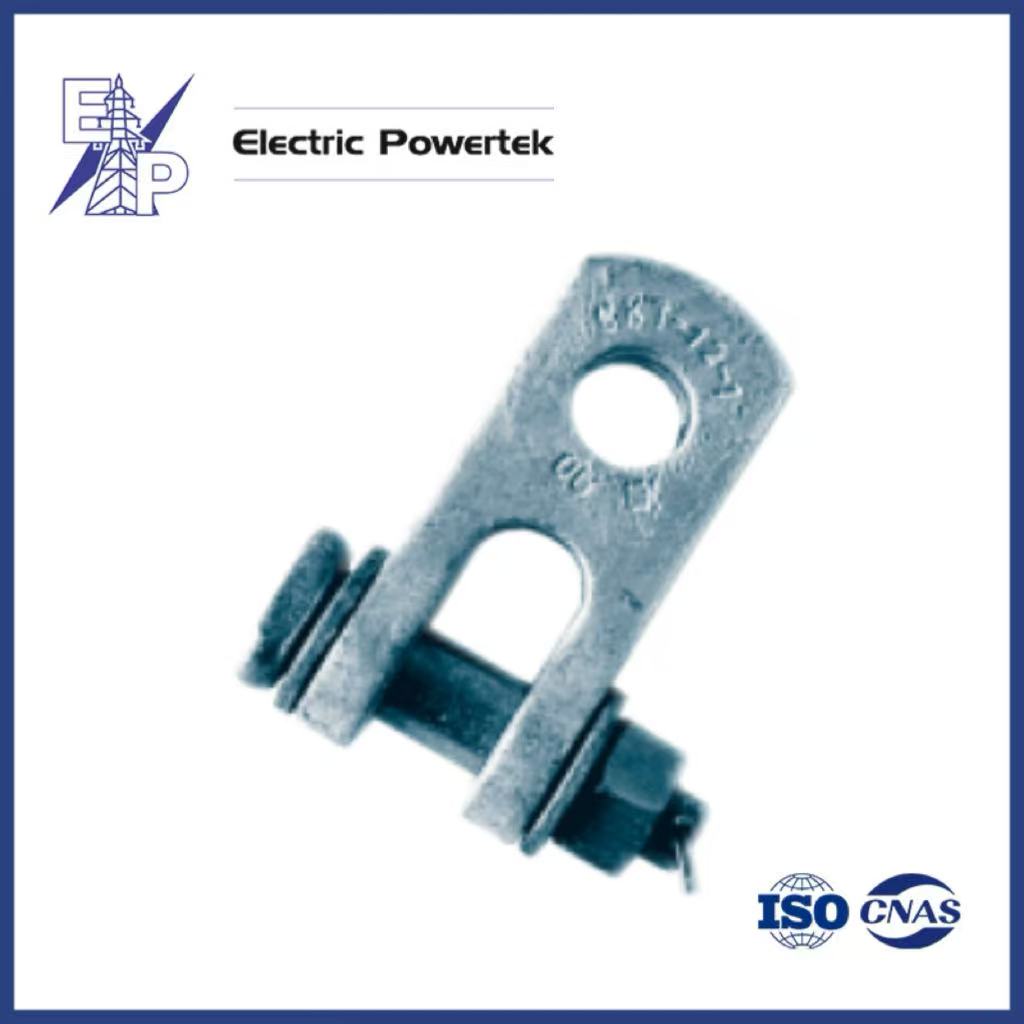

Shackles of SKT type are intended for coupling line fittings with different mechanicalratings, for twisting the pivoting axis by 90'.Shackles meet Tu 3449-107-00111120-94 requirements.
Company Profile




Please click the link in the description for more product information!

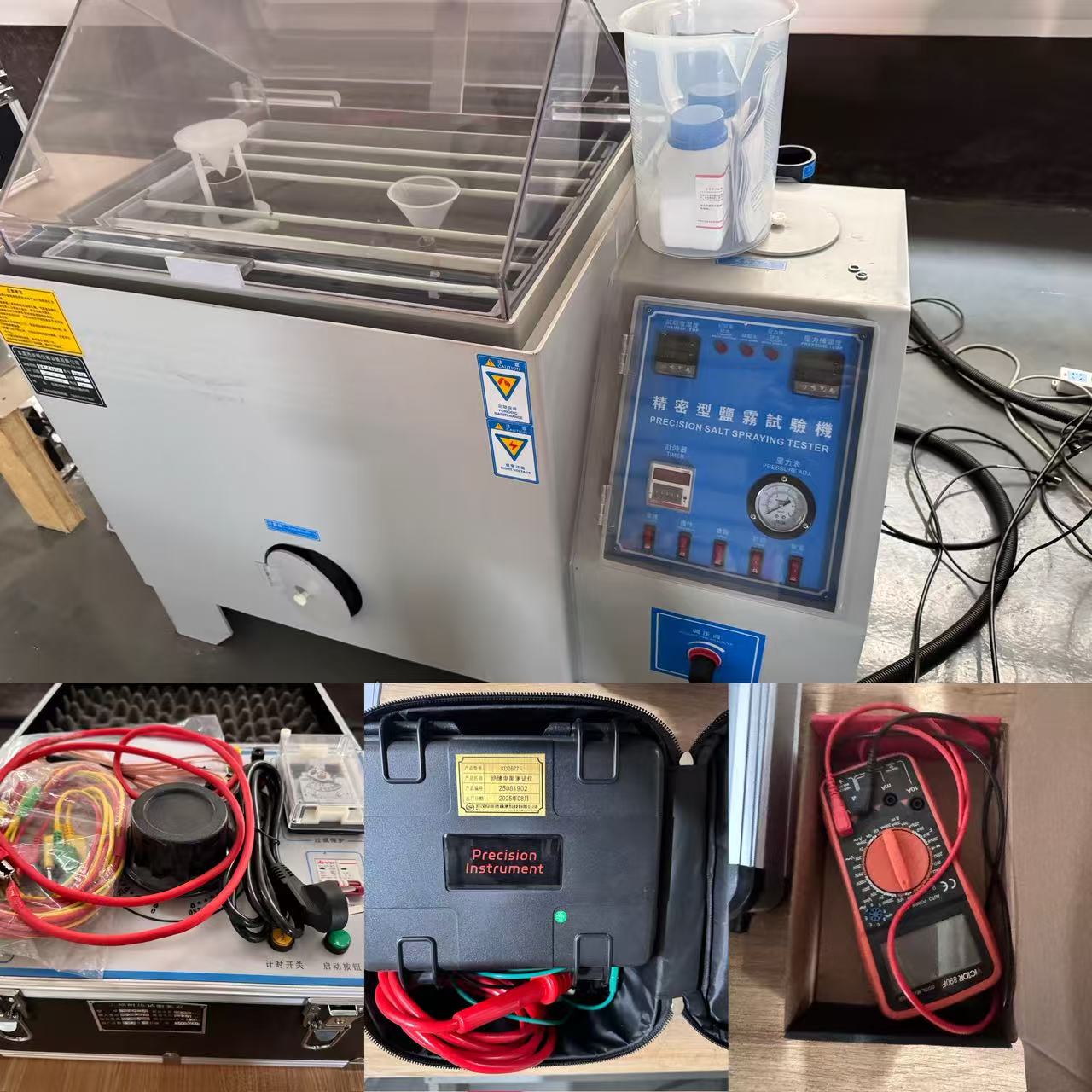

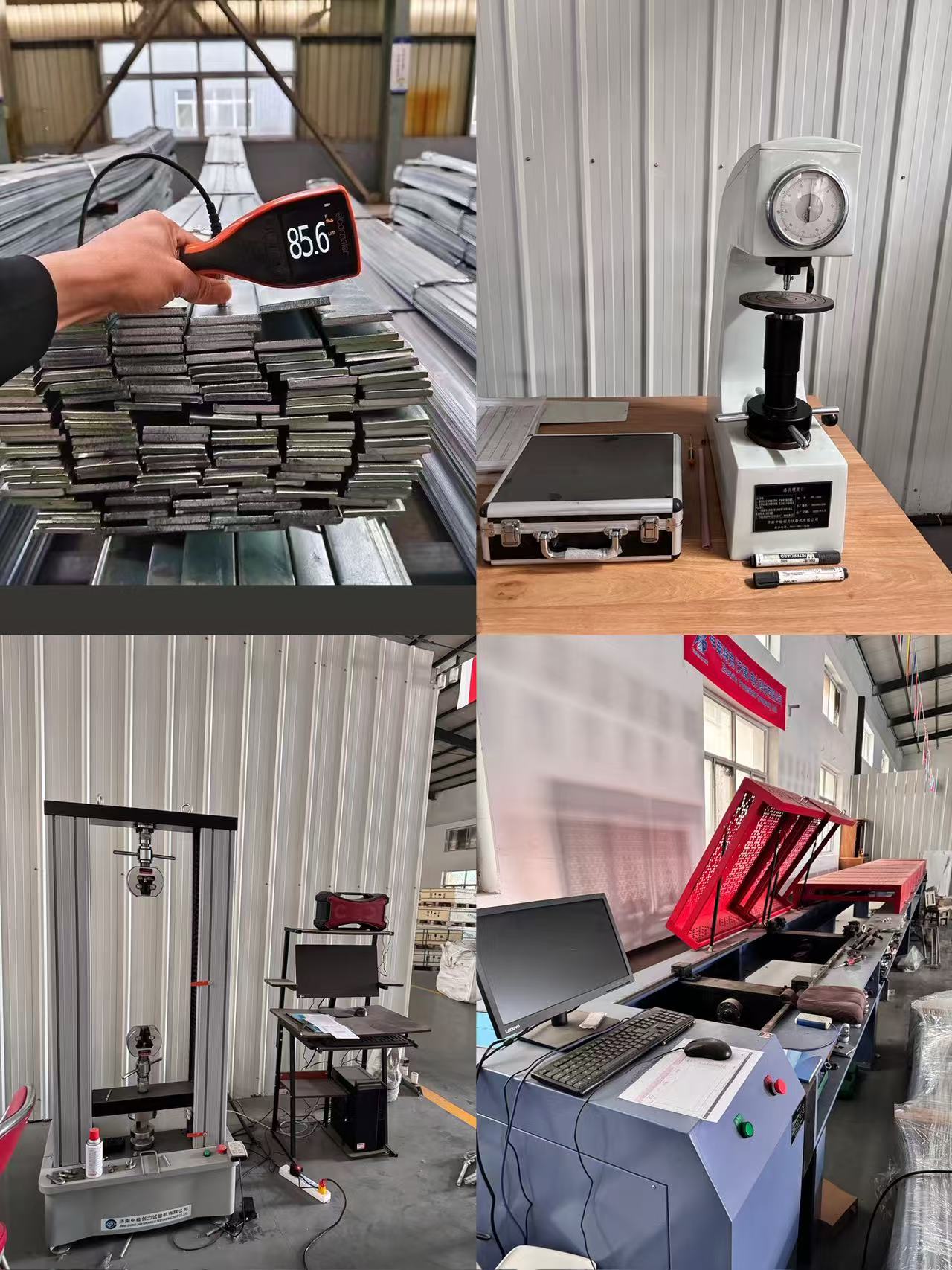

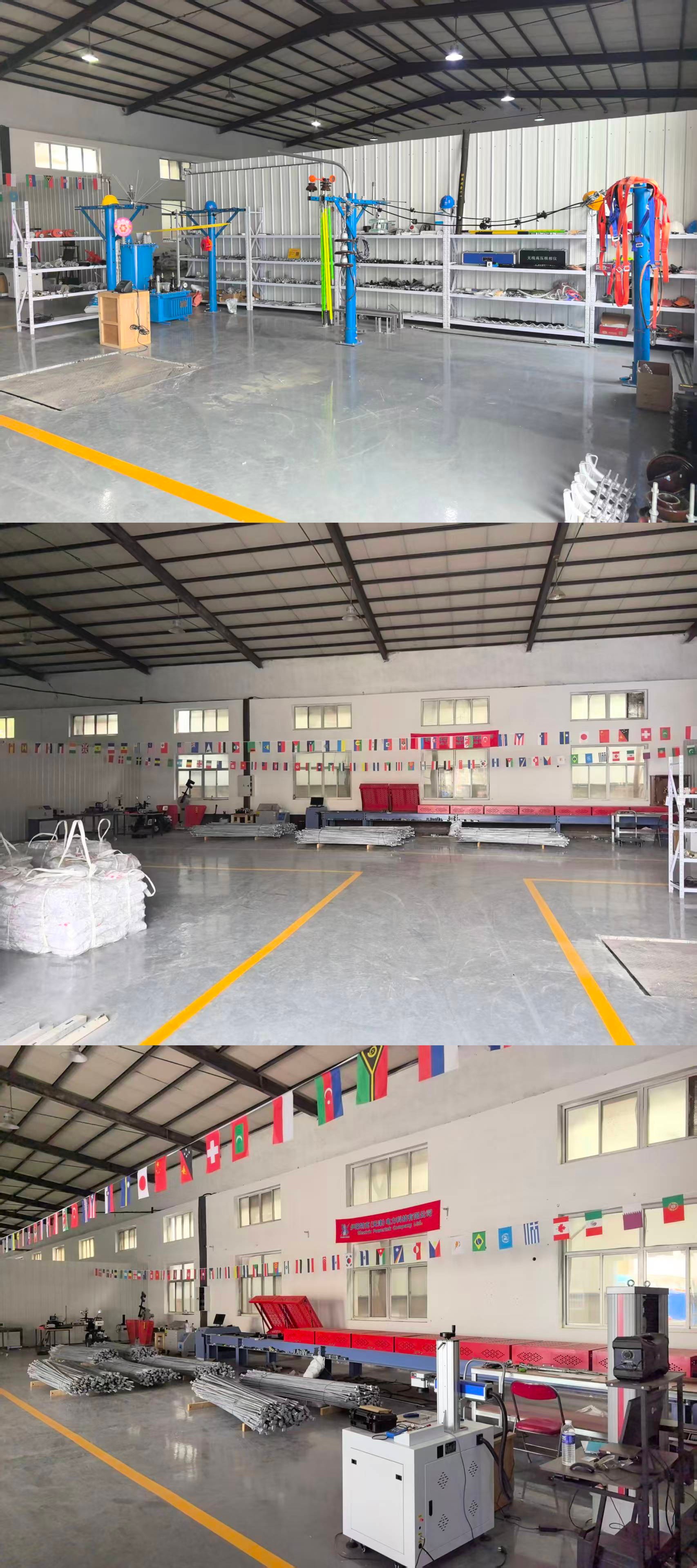

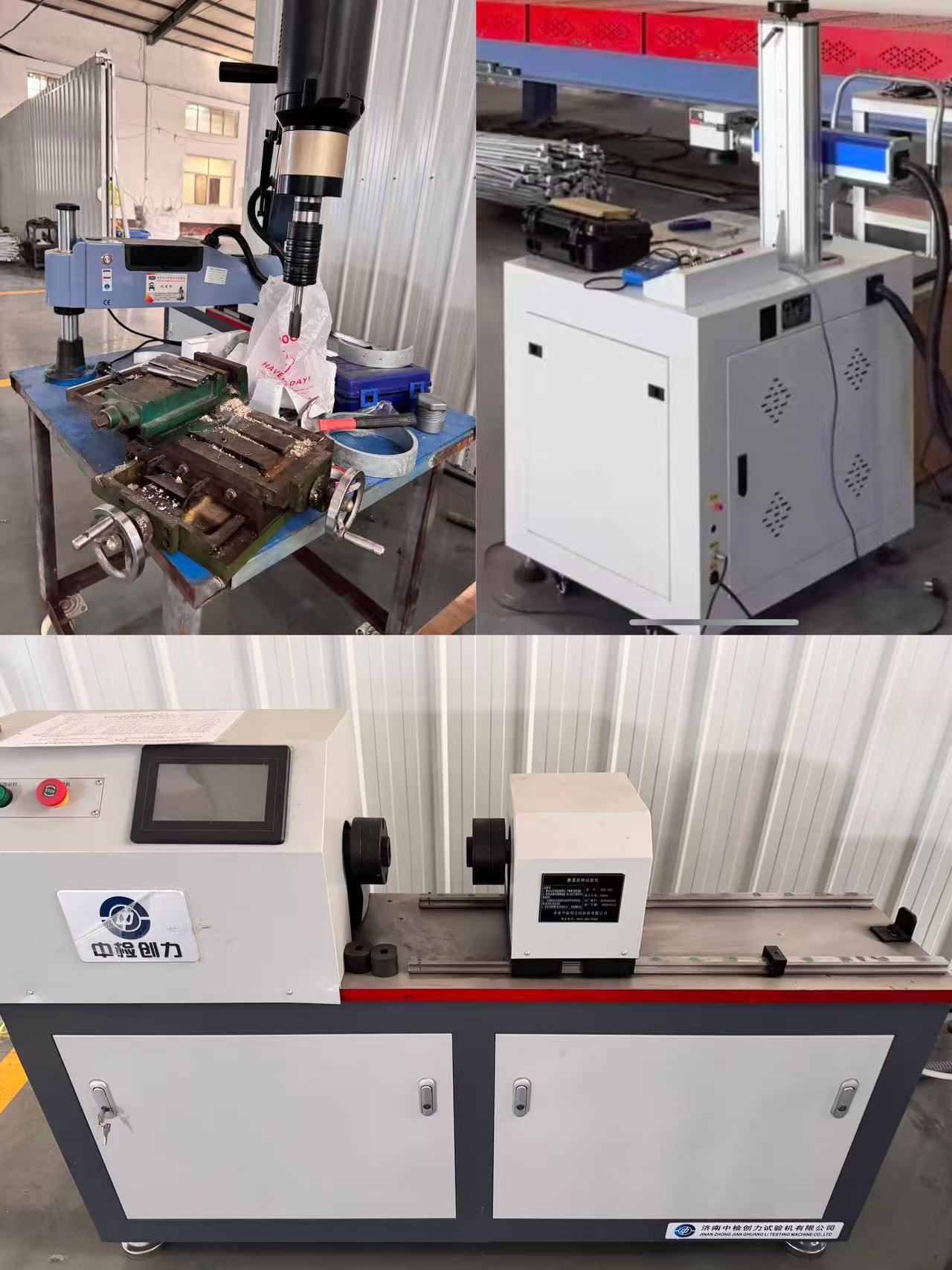

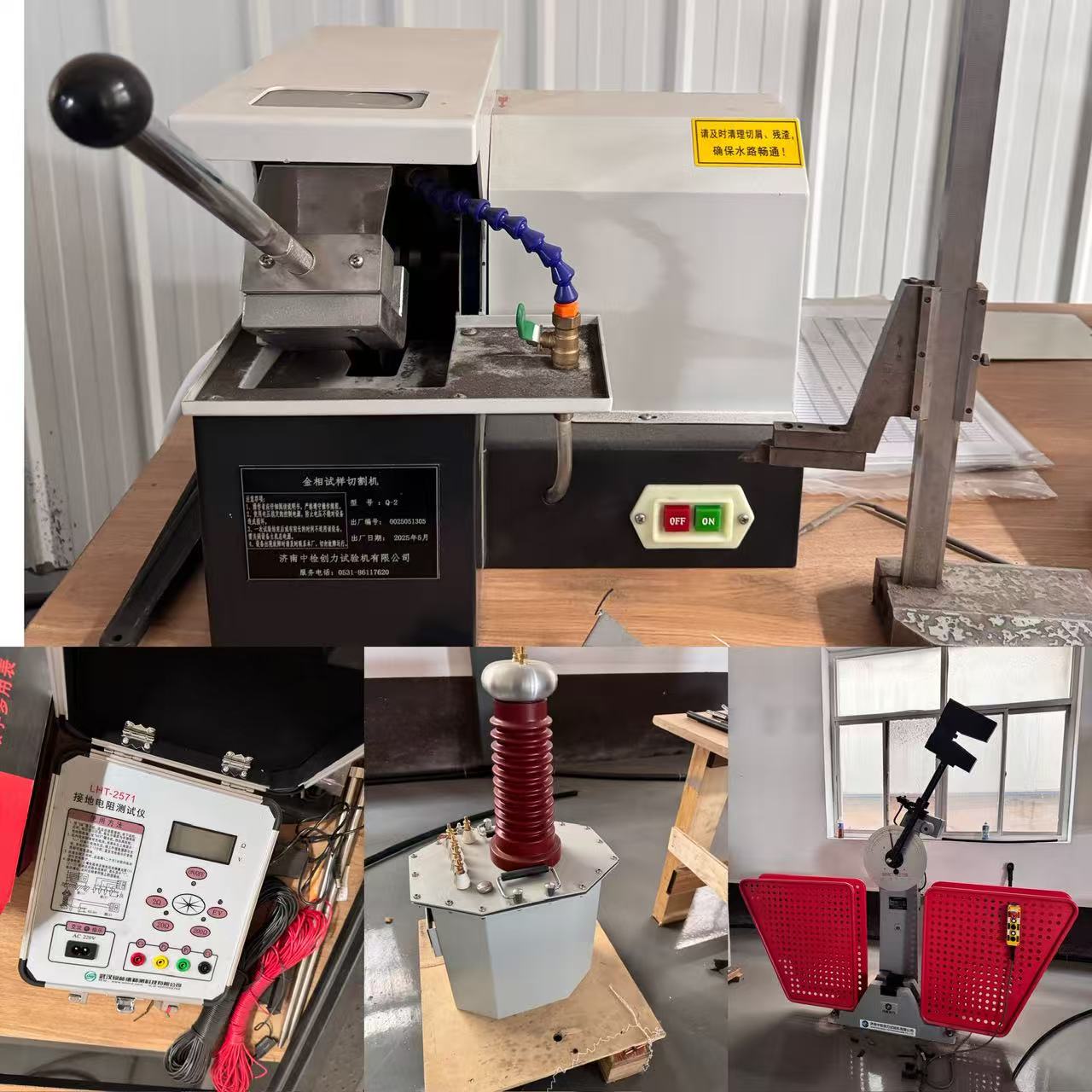

Factory Environment and Machinery Equipment

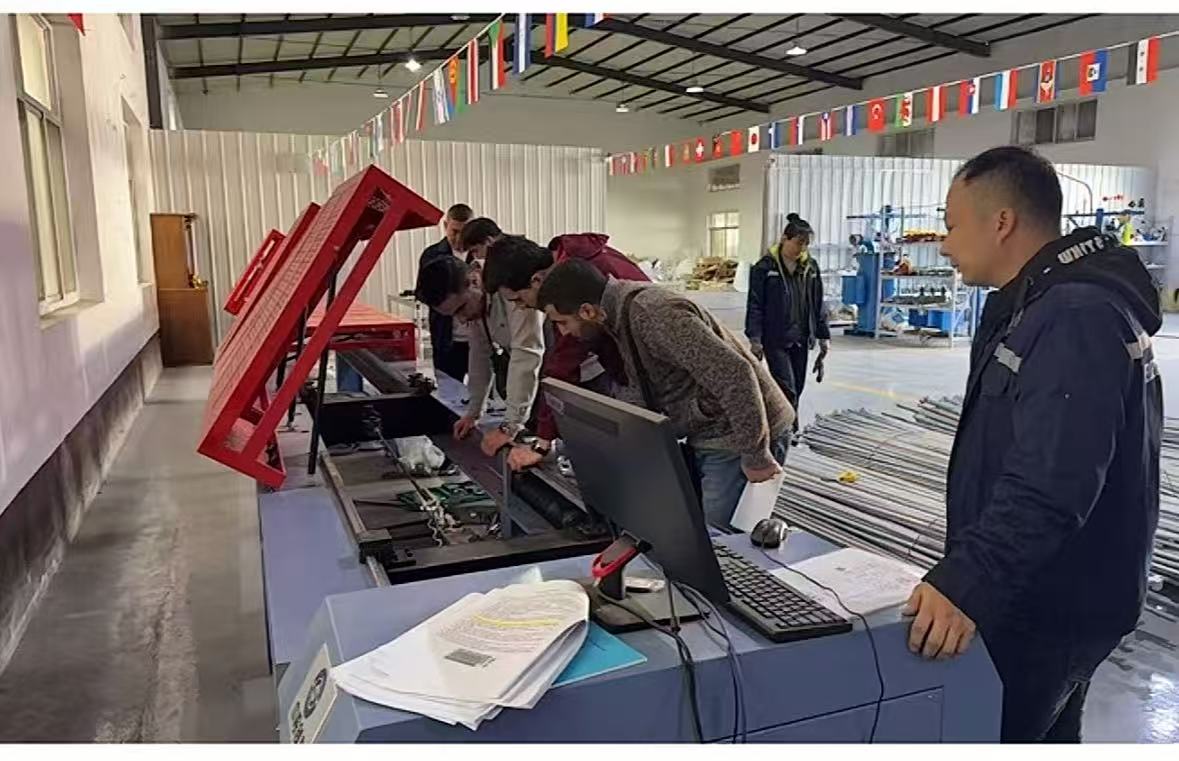

Customer inspection.



Contact Me
lf you are interested in our products, please feel free to contact me!
We are ready to help you develop the market with our high-quality products at any time, andwe also hope to become your Chinese supplier to provide the best support and service for yourongoing and future projects.

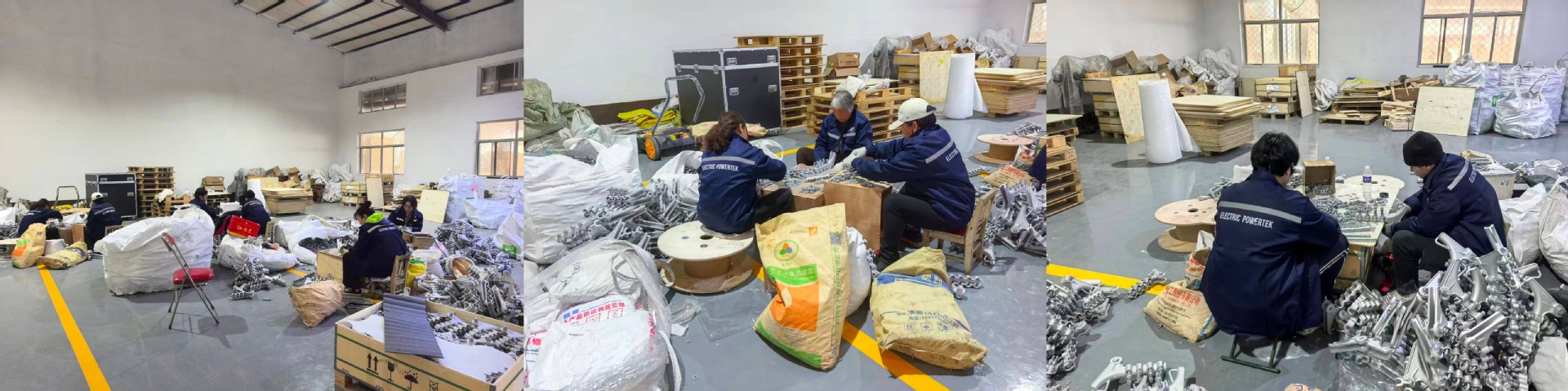

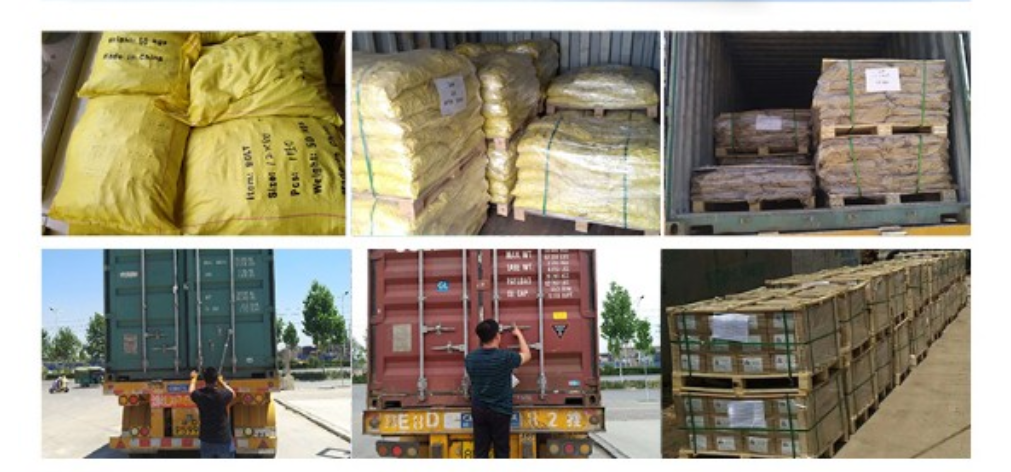

packing&Delivery
