Product Description

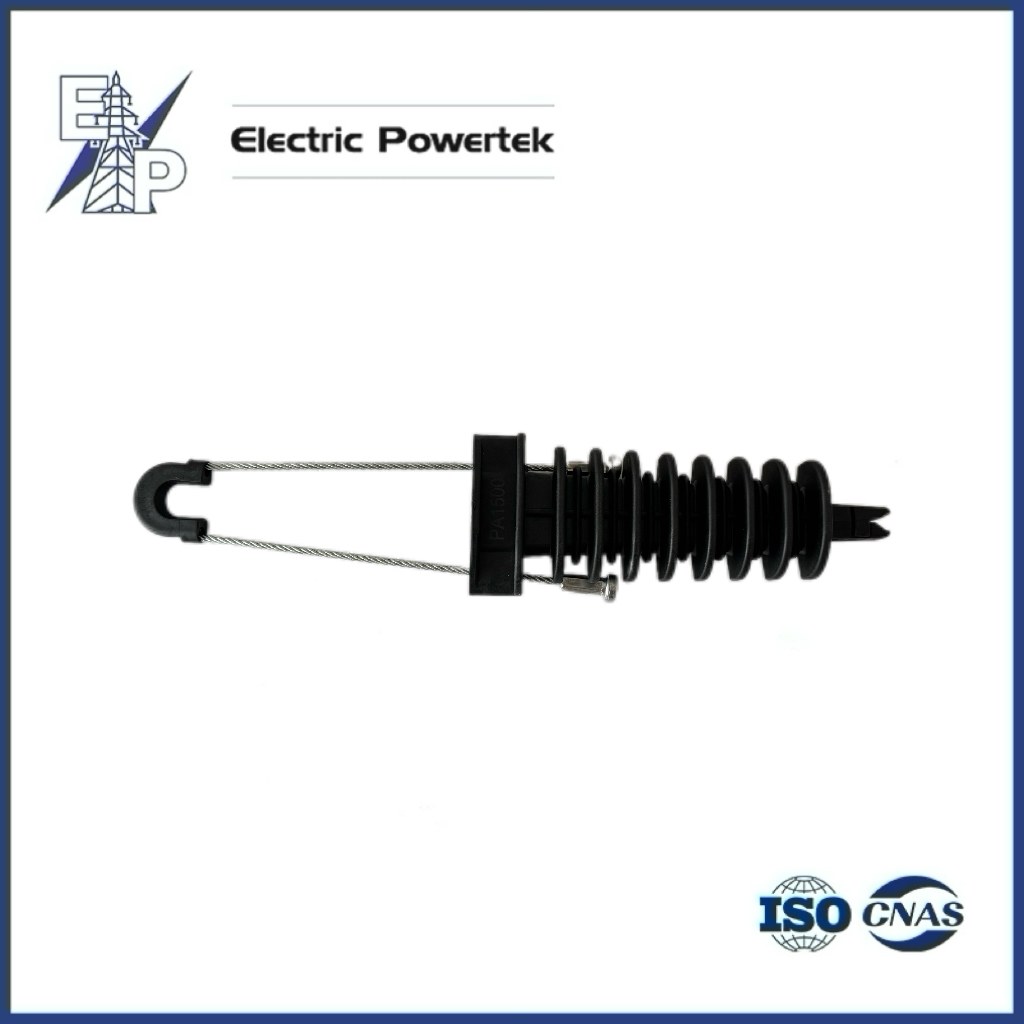

PA‑1500 Tension Cable Clamp is a cost‑effective wedge‑type self‑locking overhead line fitting, specially developed for medium‑size ADSS optical cables and ABC overhead bundled cables. This lightweight tension cable clamp is designed for terminal anchoring and tension fixing of outdoor communication and low‑voltage distribution lines, which has become one of the most popular fast‑installation hardware accessories for FTTH, rural power‑grid reconstruction and urban overhead cable projects.

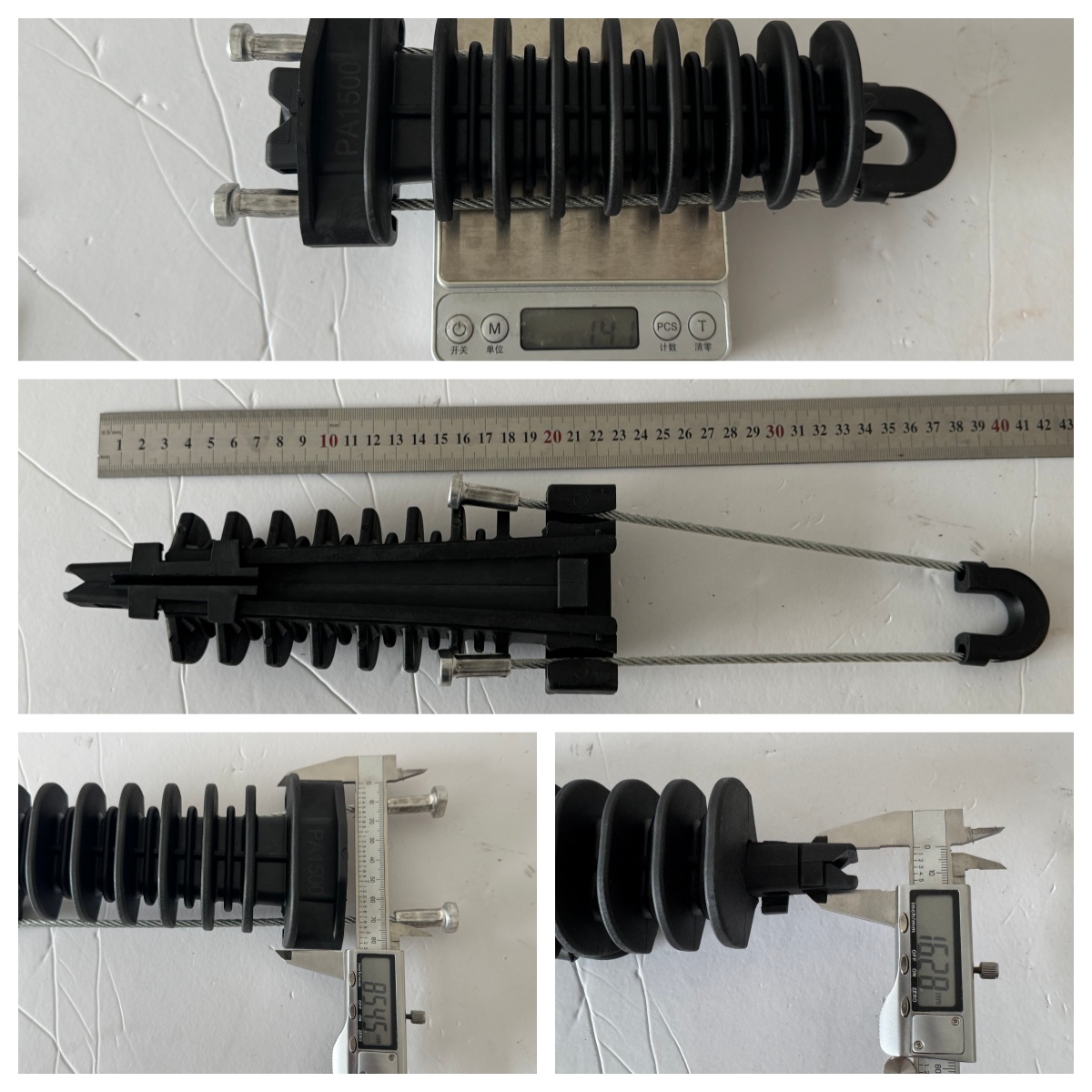

Adopting the proven wedge‑shaped self‑locking structure, the PA‑1500 self‑locking tension clamp features a clamping range of 35‑70 mm², applicable cable outer diameter from 10 mm to 14 mm, and guaranteed breaking tension of 7‑8 KN. The inner wedge block will automatically lock under cable tension and prevent slippage during long‑time outdoor service. The clamping jaw is precision‑shaped to fit the cable outer sheath perfectly, so no scratches, extrusion or damage will be caused to the cable outer layer after installation, effectively protecting the integrity and service life of your ADSS fiber optic cable or ABC bundled power cable.
A major highlight of the PA‑1500 tension cable clamp is tool‑free installation. No wrench, torque tool or extra tightening parts are required on‑site. Field workers can complete anchoring work manually within minutes, which greatly speeds‑up overhead cable construction and cuts down labor costs. The simple and reliable structure also lowers the failure rate and later maintenance workload for your overhead lines.
Made of high‑strength engineering polymer, the PA‑1500 overhead cable clamp possesses outstanding weather‑resistance, UV‑resistance, anti‑aging and anti‑corrosion performance. It can endure harsh outdoor environments including strong sunlight, rain wash, temperature fluctuation, humidity and industrial pollution. Stable clamping force can be maintained year‑round even in coastal, high‑altitude and open‑air conditions.
Widely used for terminal anchoring, tension fastening and dead‑end fixation of overhead communication cables and distribution network cables, the PA‑1500 tension cable clamp is an ideal selection for power contractors, communication installers and electrical hardware wholesalers around the world.
Product Inspection
Application Scenarios
Transport Packaging

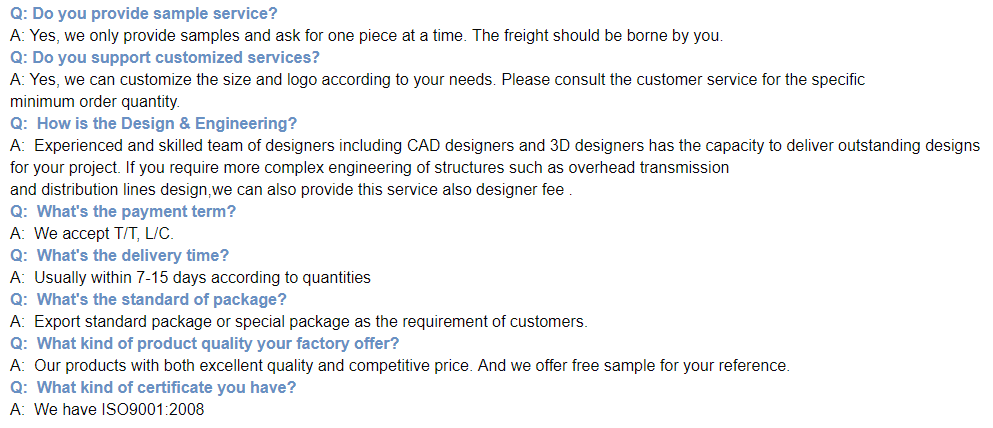

FAQ
