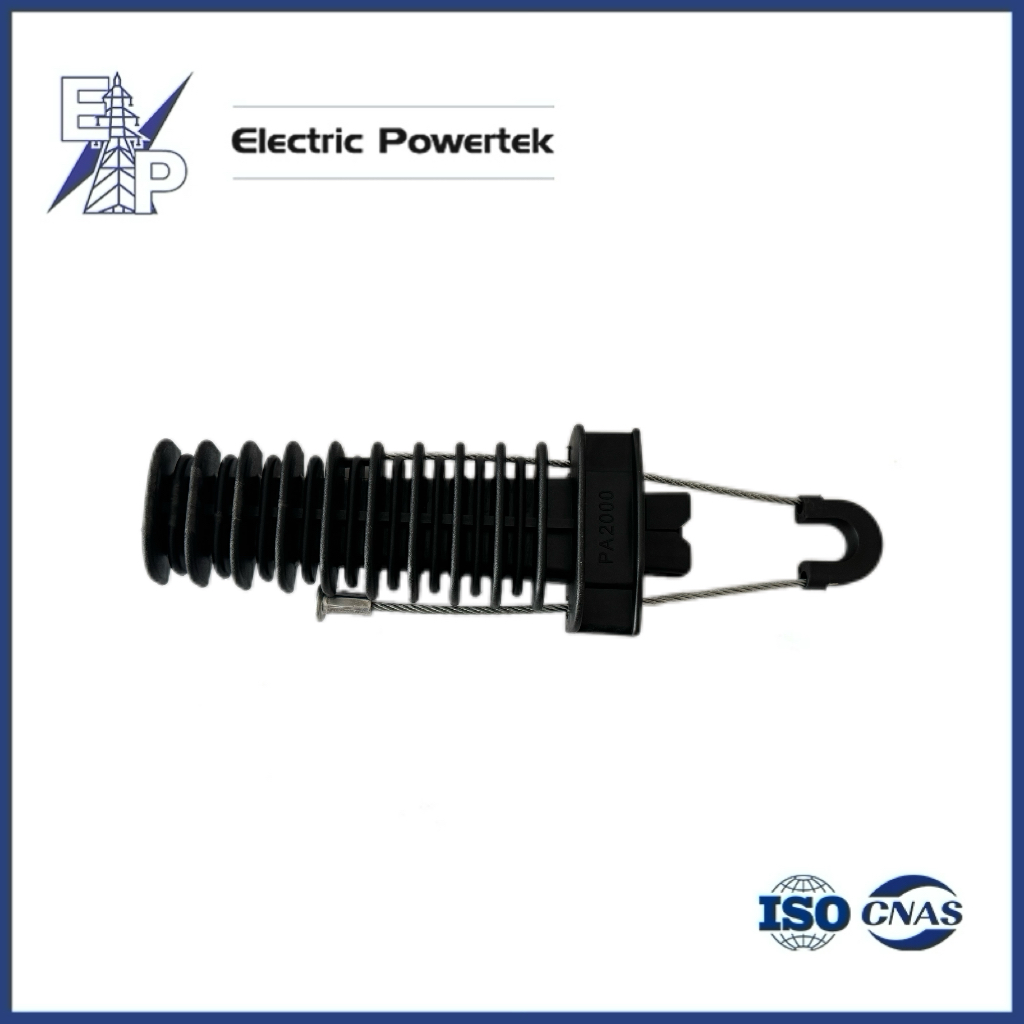

PA-2000 Tension Cable Clamp is a lightweight and practical wedge self-locking cable tension clamp designed for medium-large diameter overhead power and communication cables. Optimized for low and medium tension line applications, this 6KN cable clamp is widely used for terminal anchoring, tension fixing and straining of ADSS optical cables and ABC overhead bundled cables in outdoor distribution and communication line projects.

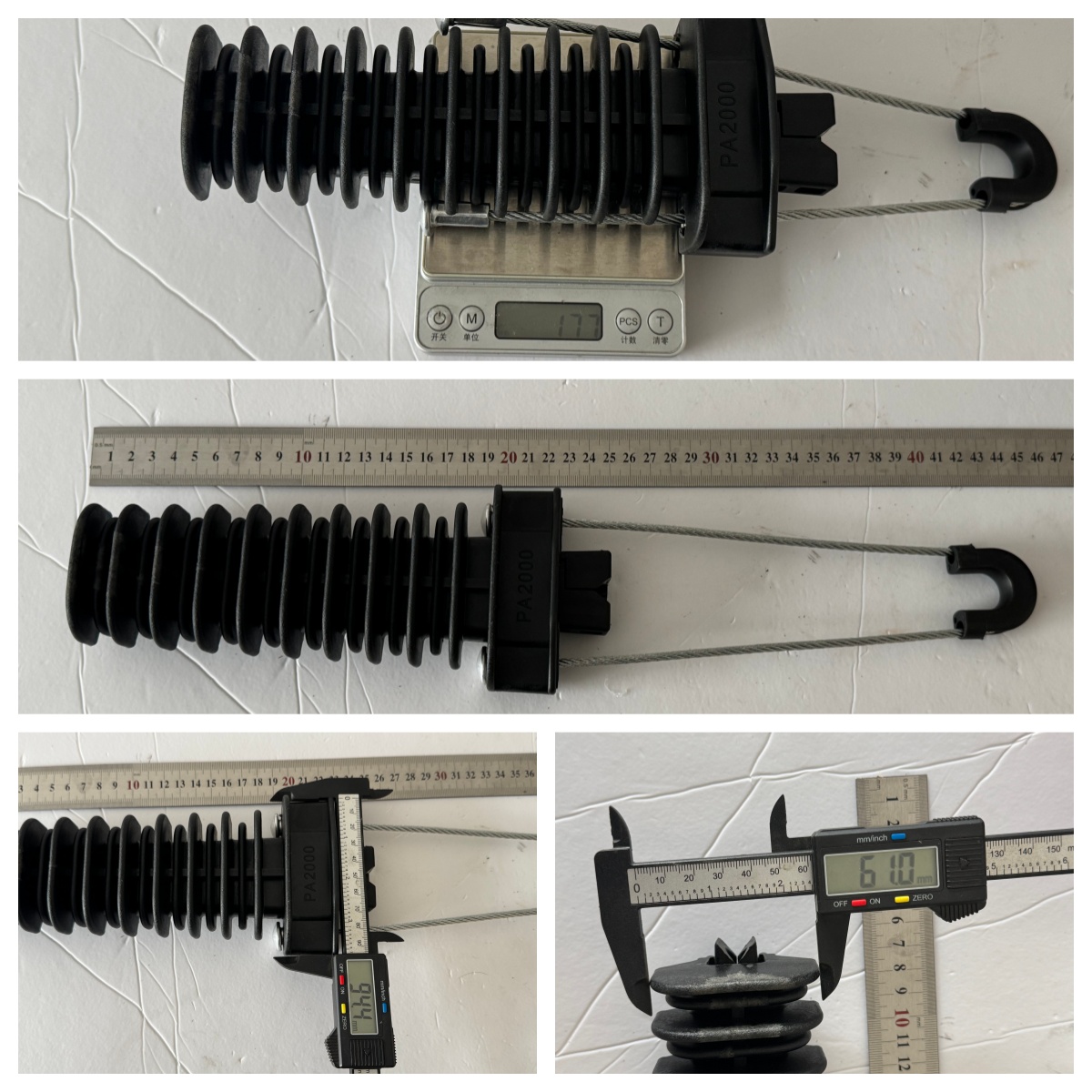

Featuring a reliable wedge-shaped self-locking structure, the PA-2000 tension cable clamp provides stable tensile performance with a maximum breaking tension of 6KN and covers a wide clamping range of 70mm² to 120mm². It perfectly matches large-size overhead cables commonly used in residential power distribution, FTTH fiber projects and rural grid renovation. The unique self-locking wedge mechanism automatically tightens and grips the cable firmly under tension, effectively preventing cable loosening, slipping and displacement caused by long-term wind vibration and outdoor environmental changes.
One of the core advantages of the PA-2000 self-locking cable clamp is tool-free installation. No professional tools, bolts or extra accessories are required during on-site installation. The clamp can be easily mounted manually, greatly improving construction efficiency and saving installation time and labor costs. The inner wedge adopts a cable-protective structural design that fits closely with the cable outer sheath without squeezing, scratching or damaging the cable surface, ensuring complete cable safety and extending the overall service life of overhead lines.
Manufactured with high-strength anti-aging insulating material, the PA-2000 overhead cable tension clamp delivers excellent weather resistance, corrosion resistance and UV resistance. It can adapt to various harsh outdoor working conditions, resisting long-term sunlight exposure, rain erosion, high and low temperature cycling and atmospheric corrosion. With stable physical and mechanical properties, it requires almost no daily maintenance, making it a cost-effective solution for long-term outdoor line operation.
Compact in structure, lightweight and easy to transport, the PA-2000 tension cable clamp is widely applicable for ADSS optical cable terminal anchoring, ABC bundled cable tension fixing, overhead distribution line termination and communication line fastening. It is an essential power line hardware accessory for overhead power grids, fiber communication engineering and outdoor electrical installation projects.
