Product Description
| Reference designation | Dimensions，mm | Minimumfailing load, kN | Weight, kg | |||
| H | A | B | D | |||
| U1-4-11 | 80.5 | 12.5 | 14 | 15 | 40 | 0.53 |
| U1-7-16 | 96.5 | 19.2 | 16 | 17 | 70 | 0.62 |
U1-12-16 | 102.5 | 19.2 | 22 | 23 | 120 | 1.05 |
| U1-16-20 | 113.5 | 23 | 25 | 26 | 160 | 1.6 |
| U1-21-20 | 130.5 | 23 | 28 | 29 | 210 | 2.24 |
| U1-30-24 | 150 | 27.5 | 36 | 38 | 300 | 5.04 |
| U1K-7-16 | 77 | 19.2 | 16 | 17 | 70 | 0.57 |

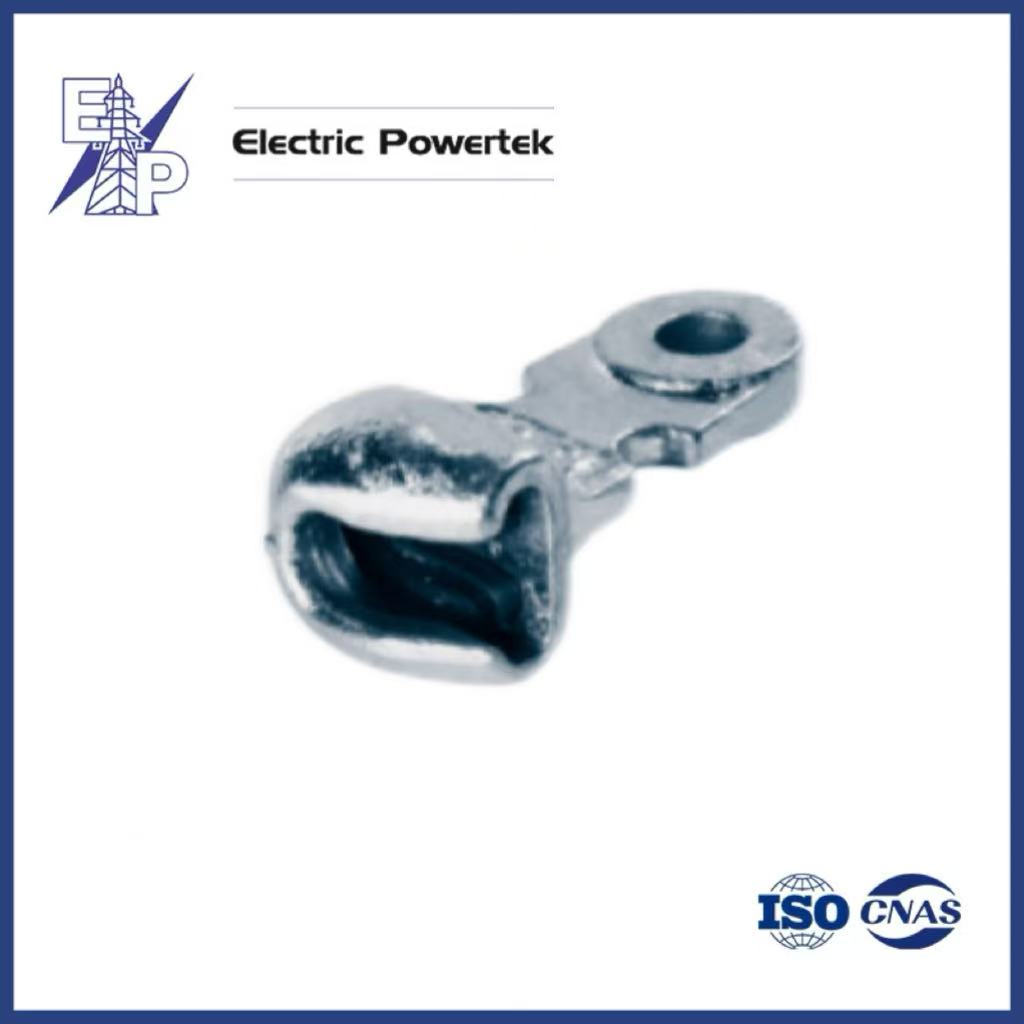

Socket eyes of U1 and UiK type are intended for coupling a pin of a string insulatorunit or a ball eye with another line fitting.Socket of the ball and socket coupling of the socket eye is designed in compliancewith GOsT 27396-93.Coupling dimensions comply with GOST 11359-75 requirements.Socket eyes are supplied complete with W-clips intended for locking of insulatorpins or ball eye balls.Socket eyes meet Tu 3449-111-00111120-95 requirements.
