Product Description
Reference designation | Dimensions,mm | Minimum failing load, kN | Weight, kg | |||
| H | A | B | d | |||
| US-7-16 | 104 | 19.2 | 110 | 18 | 70 | 1.25 |
| US-12-16 | 113 | 19.2 | 130 | 25 | 120 | 2 |
| US-16-20 | 132 | 23 | 146 | 28 | 160 | 2.9 |
| US-21-20 | 145 | 23 | 168 | 28 | 210 | 4.71 |
| USK-7-16 | 67 | 19.2 | 110 | 18 | 70 | 1.2 |
| USK-12-16 | 78 | 19.2 | 130 | 25 | 120 | 2.1 |
| USK-16-20 | 90 | 23 | 142 | 28 | 160 | 3.5 |
| USK-21-20 | 90 | 23 | 168 | 28 | 210 | 4.17 |

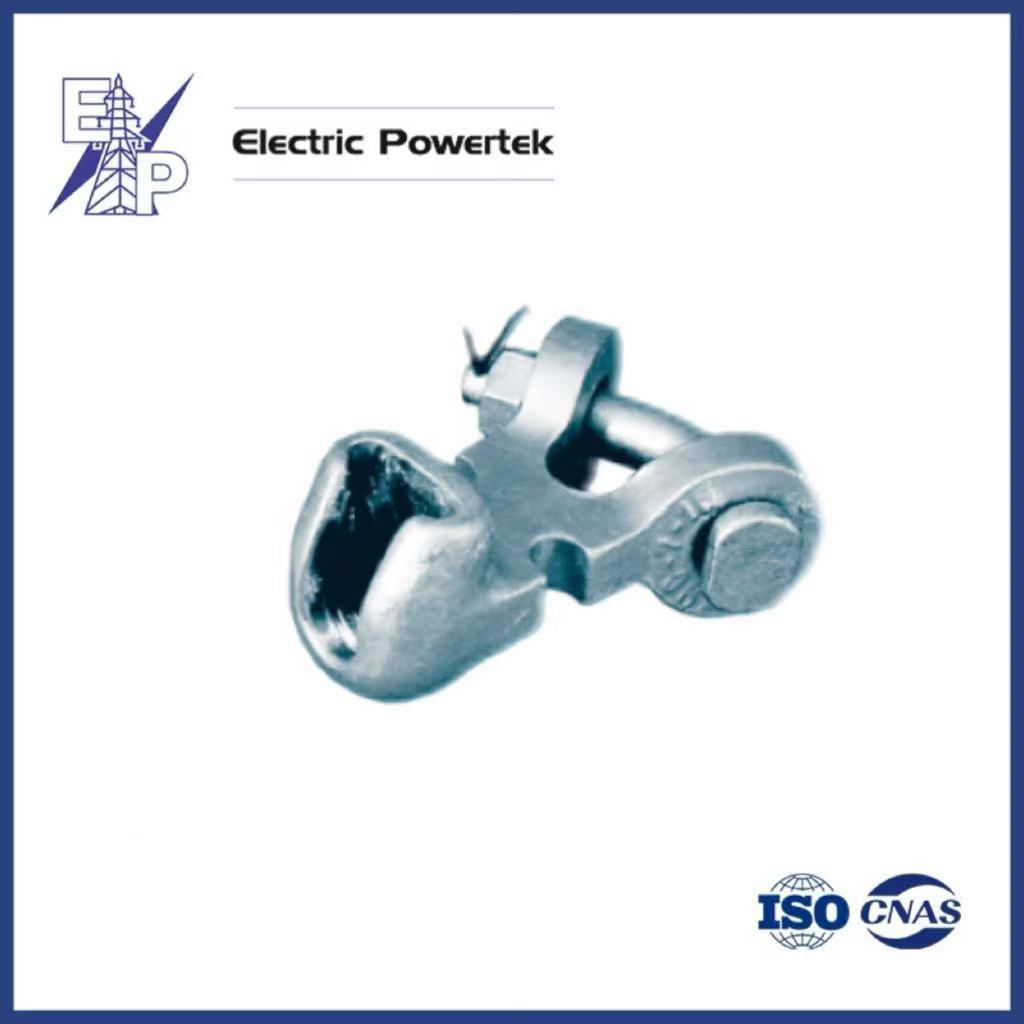

Socket eyes of Us and USK type are intended for coupling a pin of a string insulatorunit with a shackle of SK type or a suspension clamp, as well as for fasteningprotective rings and arcing horns to them.Socket eyes meet TU 3449-111-00111120-95 requirements.
