Product Description

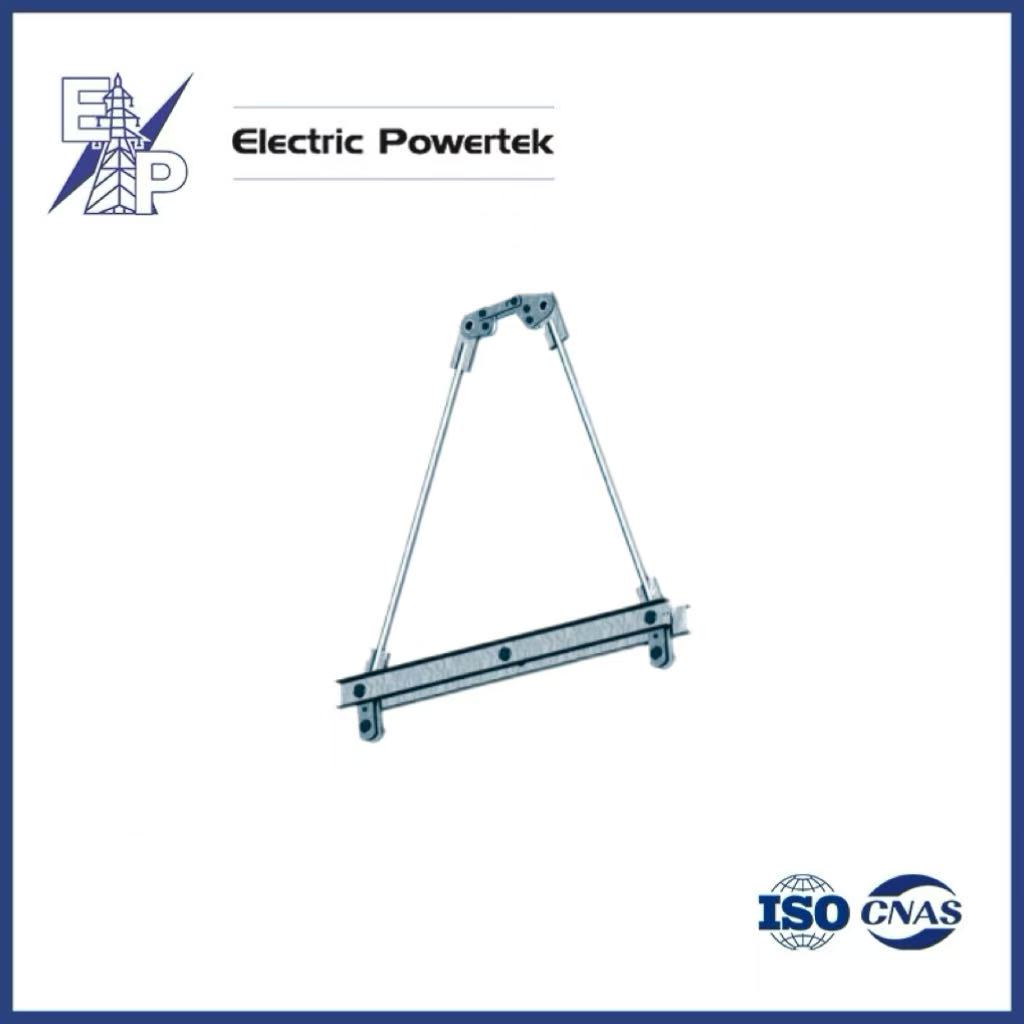

Yokes of 2KD2 type with two attachment points are intended for two insulatingstrings of power lines.Yokes meet Tu 3449-112-00111120-95 requirements.

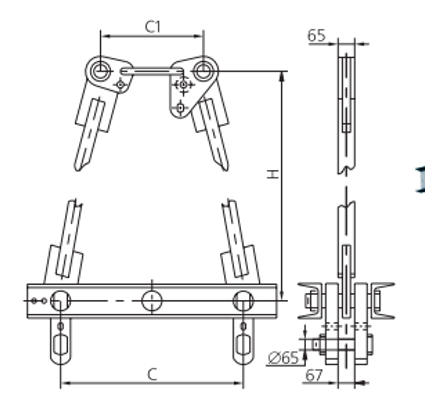

Reference designation | Dimensions, mm | Minimum failing load, kN | Weight, kg | ||
| C | C1 | H | |||
| 2KD2-240-1 | 2700 | 600 | 2760 | 2158 | 429 |
| 2KD2-240-2 | 1200 | 600 | 2953 | 2158 | 375 |
| 2KD2-240-3 | 2700 | 960 | 2825 | 2158 | 436 |
