Product Description

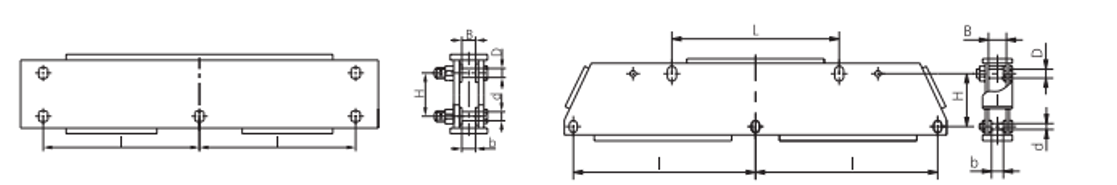

Reference designation | Dimensions，mm | Minimum failing load, kN | Weight, kg | ||||||
| L | I | H | B | b | D | d | |||
| 3KD2-60-1 | 600 | 450 | 160 | 38 | 29 | 36 | 28 | 600 | 56.5 |
| 3KD2-90-3 | - | 450 | 120 | 42 | 38 | 40 | 36 | 900 | 91 |
| 3KD2-120-1 | 1500 | 900 | 250 | 47 | 42 | 45 | 40 | 1200 | 213 |
| 3KD2-180-1 | 1200 | 1350 | 350 | 58 | 47 | 56 | 45 | 1800 | 457.1 |

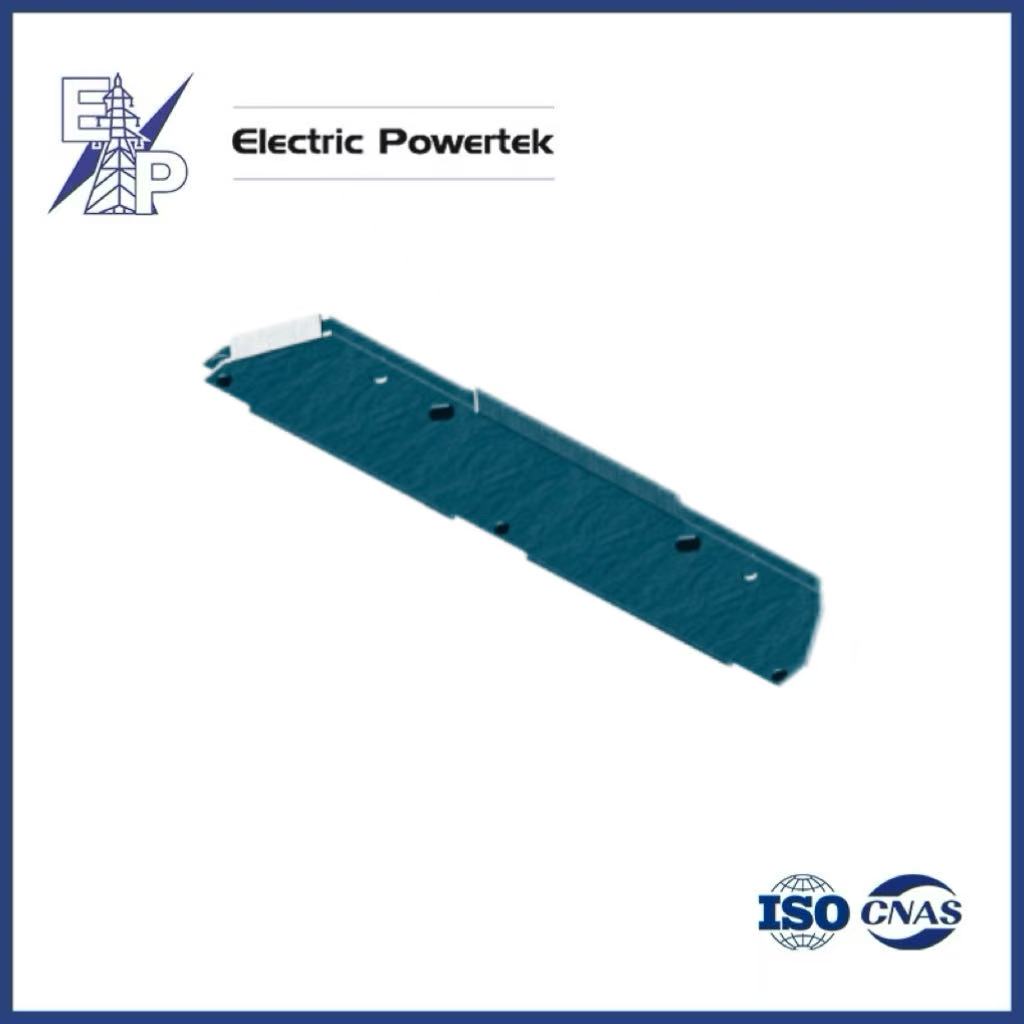

Yokes of 3KD2 type with two attachment points are intendedfor three insulating strings of power lines.Yokes meet Tu 3449-112-00111120-95 requirements
